• Part: EE-SX305
  • Manufacturer: OMRON
  • Size: 207.68 KB
Download EE-SX305 Datasheet PDF

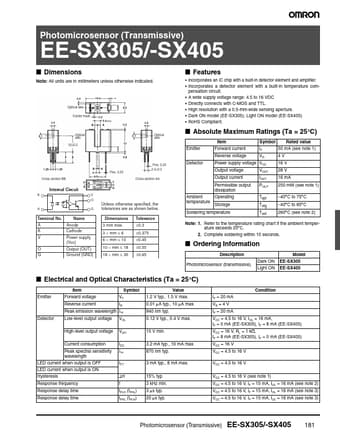

EE-SX305 datasheet preview
EE-SX305 page 2
Page 2
EE-SX305 page 3
Page 3

EE-SX305 Key Features

  • Incorporates an IC chip with a built-in detector element and amplifier
  • Incorporates a detector element with a built-in temperature
  • pensation circuit
  • A wide supply voltage range: 4.5 to 16 VDC
  • Directly connects with C-MOS and TTL
  • High resolution with a 0.5-mm-wide sensing aperture
  • Dark ON model (EE-SX305); Light ON model (EE-SX405)
  • RoHS pliant

Related OMRON Datasheets

Part Number Description
EE-SX3009-P1 Photomicrosensor
EE-SX3070 Photomicrosensor
EE-SX3088-W1 Photomicrosensor
EE-SX3088-W11 Photomicrosensor
EE-SX3160-W11 Photomicrosensor

EE-SX305 Description

Photomicrosensor (Transmissive) EE-SX305/-SX405 Dimensions Note: All units are in millimeters unless otherwise indicated. Optical axis Center mark Optical axis 10±0.2 Optical axis Cross section BB Five, 0.25 Five, 0.25 2.5±0.2 Cross section AA Internal Circuit K V O AG Terminal No.
