OB2576BTCPA, OB2576TCP-On Datasheet - On-Bright Electronics

OB2576BTCPA, OB2576TCP-On, High Performance QR mode Primary-Side Power Switch

OB2576xT is an excellent primary side regulation power switch with CC/CV operation for medium level power AC/DC charger and adapter applications. The device integrates an internal power MOSFET and operates in QR mode to provide high efficiency along with several functions of built-in protections. It.

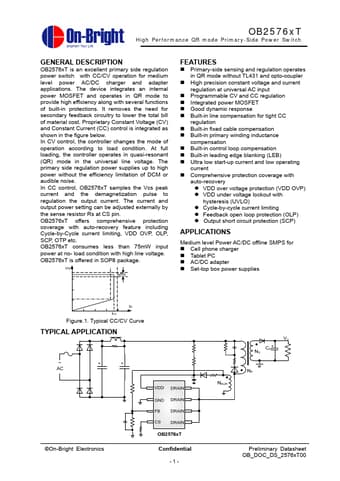

Datasheet Preview Page 1

OB2576TCP-On-BrightElectronics.pdf

OB2576BTCPA Datasheet Preview — This datasheet PDF includes multiple part numbers: OB2576BTCPA, OB2576TCP-On. Please refer to the document for exact specifications by model.

OB2576BTCPA Datasheet Preview Page 2

OB2576BTCPA Datasheet Preview Page 3

Datasheet Details

Part number:

OB2576BTCPA, OB2576TCP-On

Manufacturer:

On-Bright Electronics

File Size:

383.70 KB

Description:

High Performance QR mode Primary-Side Power Switch

Note:

This datasheet PDF includes multiple part numbers: OB2576BTCPA, OB2576TCP-On.
Please refer to the document for exact specifications by model.

OB2576BTCPA Features

* Primary-side sensing and regulation operates in QR mode without TL431 and opto-coupler

* High precision constant voltage and current regulation at universal AC input

* Programmable CV and CC regulation

* Integrated power MOSFET

* Good dynamic response

* Built-in line compen
