RS2201 - Switching Power Supply Controller

Description

RS2201, produced by advanced integrated circuit process, is a switch power supply controller, which could offer over-load and saturation protection, and achieve green economize on energy and environmental protection standard.

Features

  • Over-load and saturation protection could protect over-load, switch transformer saturation and output short circuit or the relative failures. It is economical that triode is used for switch device, which could start up the circuit with its amplification function and reduce ten times of power consumption of the start-up resistance. Built-in Synchronized Slope Compensation circuit, thermal protection circuit, slope current drive circuit. Zero-load output power consumption could be less than 0.3W,.

📥 Download Datasheet

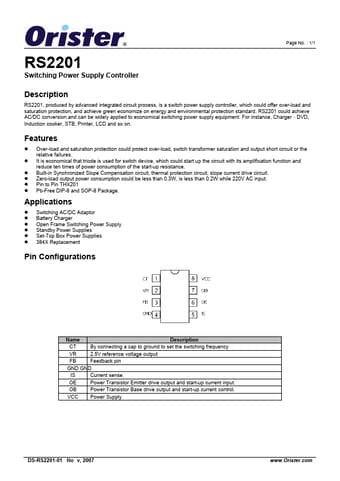

Datasheet preview – RS2201

Datasheet Details

Part number RS2201
Manufacturer Orister
File Size 617.81 KB
Description Switching Power Supply Controller
Datasheet download datasheet RS2201 Datasheet
Additional preview pages of the RS2201 datasheet.
