SURFACE MOUNT SILICON ZENER DIODE

No Preview Available !

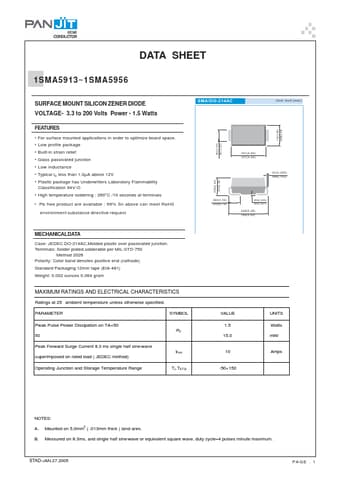

DATA SHEET
1SMA5913~1SMA5956
SURFACE MOUNT SILICON ZENER DIODE
VOLTAGE- 3.3 to 200 Volts Power - 1.5 Watts
FEATURES
• For surface mounted applications in order to optimize board space.
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Typical IR less than 1.0µA above 12V
• Plastic package has Underwriters Laboratory Flammability
Classification 94V-O
• High temperature soldering : 260°C /10 seconds at terminals
• Pb free product are available : 99% Sn above can meet RoHS
environment substance directive request
SMA/DO-214AC
Unit: inch (mm)
.181(4.60)
.157(4.00)
.012(.305)
.006(.152)
.060(1.52)
.030(0.76)
.008(.203)
.002(.051)
.208(5.28)
.188(4.80)
MECHANICALDATA
Case: JEDEC DO-214AC,Molded plastic over passivated junction.
Terminals: Solder plated,solderable per MIL-STD-750
Method 2026
Polarity: Color band denotes positive end (cathode)
Standard Packaging:12mm tape (EIA-481)
Weight: 0.002 ounces 0.064 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
PARAMETER
SYMBOL
Pwak Pulse Power Dissipation on TA=50
50
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load ( JEDEC method)
PD
IFsm
Operating Junction and Storage Temperature Range
TJ,TSTG
VALUE
1.5
15.0
10
-50+150
UNITS
Watts
mW/
Amps
NOTES:
A. Mounted on 5.0mm2 ( .013mm thick ) land ares.
B. Messured on 8.3ms, and single half sine-wave or equivalent square wave, duty cycle=4 pulses minute maximum.
STAD-JAN.27.2005
PAGE . 1




PAN JIT

1SMA5951 Datasheet Preview

1SMA5951 Datasheet

SURFACE MOUNT SILICON ZENER DIODE

No Preview Available !

Part Number
1SMA5913
1SMA5914
1SMA5915
1SMA5916
1SMA5917
1SMA5918
1SMA5919
1SMA5920
1SMA5921
1SMA5922
1SMA5923
1SMA5924
1SMA5925
1SMA5926
1SMA5927
1SMA5928
1SMA5929
1SMA5930
1SMA5931
1SMA5932
1SMA5933
1SMA5934
1SMA5935
1SMA5936
1SMA5937
1SMA5938
1SMA5939
1SMA5940
1SMA5941
1SMA5942
1SMA5943
1SMA5944
1SMA5945
1SMA5946
1SMA5947
1SMA5948
1SMA5949
1SMA5950
1SMA5951
Marking Code
VZ @ IZT
Maximum Zener
Impedance
ZZT @ IZT
ZZK @ IZK
Maximum
Leakage
Current
IR @VR
Nom. V Min. V Max. V O mA O mA uA V
913A
3.3 3.13 3.47 10 113.6 500 1.00 100.0 1.0
914A
3.6 3.42 3.78 9 104.2 500 1.00 75.0 1.0
915A
3.9 3.70 4.10 7.5 96.1 500 1.00 25.0 1.0
916A
4.3 4.08 4.52 6 87.2 500 1.00 5
1.0
917A
4.7 4.46 4.94 5 79.8 500 1.00 5
1.5
918A
5.1 4.84 5.36 4 73.5 350 1.00 5
2.0
919A
5.6 5.32 5.88 2 66.9 250 1.00 5
3.0
920A
6.2 5.89 6.51 2 60.5 200 1.00 5 4.0
921A
6.8 6.46 7.14 2.5 55.1 200 1.00 5 5.2
922A
7.5 7.12 7.88 3 50.0 400 0.50 5 6.0
923A
8.2 7.79 8.61 3.5 45.7 400 0.50 5 6.5
924A
9.1 8.64 9.56 4 41.2 500 0.50 5 7.0
925A
10 9.50 10.50 4.5 37.5 500 0.25 5 8.0
926A
11 10.45 11.55 5.5 34.1 550 0.25 1 8.4
927A
12 11.40 12.60 6.5 31.2 550 0.25 1 9.1
928A
13 12.35 13.65 7 28.8 550 0.25 1 9.9
929A
15 14.25 15.75 9 25.0 600 0.25 1 11.4
930A
16 15.20 16.80 10 23.4 600 0.25 1 12.2
931A
18 17.10 18.90 12 20.8 650 0.25 1 13.7
932A
20 19.00 21.00 14 18.7 650 0.25 1 15.2
933A
22 20.90 23.10 17.5 17.0 650 0.25 1 16.7
934A
24 22.80 25.20 19 15.6 700 0.25 1 18.2
935A
27 25.65 28.35 23 13.9 700 0.25 1 20.6
936A
30 28.50 31.50 28 12.5 750 0.25 1 22.8
937A
33 31.35 34.65 33 11.4 800 0.25 1 25.1
938A
36 34.20 37.80 38 10.4 850 0.25 1 27.4
939A
39 37.05 41 45 9.6 900 0.25 1 29.7
940A
43 40.85 45.2 53 8.7 950 0.25 1 32.7
941A
47 44.65 49.4 67 8.0 1000 0.25 1 35.8
942A
51 48.45 53.6 70 7.3 1100 0.25 1 38.8
943A
56 53.2 58.8 86 6.7 1300 0.25 1 42.6
944A
62 58.9 65.1 100 6.0 1500 0.25 1 47.1
945A
68 64.6 71.4 120 5.5 1700 0.25 1 51.7
946A
75 71.25 78.8 140 5.0 2000 0.25 1
56
947A
82 77.9 86.1 160 4.6 2500 0.25 1 62.2
948A
91 86.45 95.6 200 4.1 3000 0.25 1 69.2
949A
100 95 105 250 3.7 3100 0.25 1
76
950A
110 104.5 116 300 3.4 4000 0.25 1 83.6
951A
120 114 126 380 3.1 4500 0.25 1 91.2
Package
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
SMA/DO-214AC
