ER1003F, ER1000F ISOLATION SUPERFAST RECOVERY RECTIFIERS

ER1003F Description

ER1000F~ER1006F ISOLATION SUPERFAST RECOVERY RECTIFIERS VOLTAGE 50 to 600 Volt CURRENT 10 Ampere .

ER1003F Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O Flame Retardant Epoxy Molding Compound
* Low power loss, high efficiency
* Low forward voltage, high current capability
* High surge capacity
* Super fast recovery times, high volt

ER1003F Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ER1003F, ER1000F. Please refer to the document for exact specifications by model.

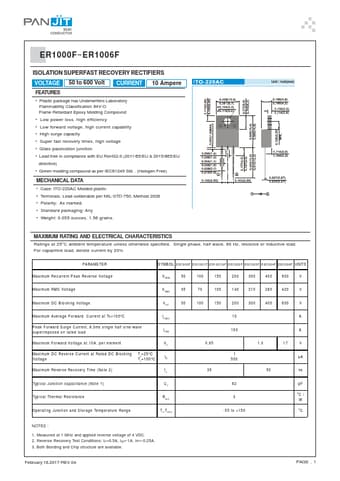

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ER1003F, ER1000F
Manufacturer
PAN JIT
File Size
88.48 KB
Datasheet
ER1000F-PANJIT.pdf
Description
ISOLATION SUPERFAST RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: ER1003F, ER1000F.
Please refer to the document for exact specifications by model.
