1.5KE110 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Download the 1.5KE110 datasheet PDF. This datasheet also covers the 1.5KE6.8 variant, as both devices belong to the same glass passivated junction transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • Glass passivated chip junction in DO-201AE package.
  • 1500W surge capability at 1.0ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time: typically less than 1.0 ps from 0 volts to BV min.
  • High temperature soldering guaranteed: 260°C/10 seconds/.375" ,(9.5mm) lead length/5lbs. , (2.3kg) tension.
  • Lead free in comply with EU RoHS.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1.5KE6.8-PanJitInternational.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1.5KE110 1500 Watt Transient Voltage Suppressors MCC
1.5KE110 1500W Transient Voltage Suppressor Comchip Technology
1.5KE110 1500W TRANSIENT VOLTAGE SUPPRESSOR Won-Top Electronics
1.5KE110 TRANSIENT VOLTAGE SUPPRESSORS Rectron
1.5KE110 1500 WATT TRANSIENT VOLTAGE SUPPRESSORS DIGITRON

Other Datasheets by PanJit Semiconductor

Part Number Description
1.5KE110A GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5KE110C GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5KE110CA GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5KE11 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
1.5KE11A GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

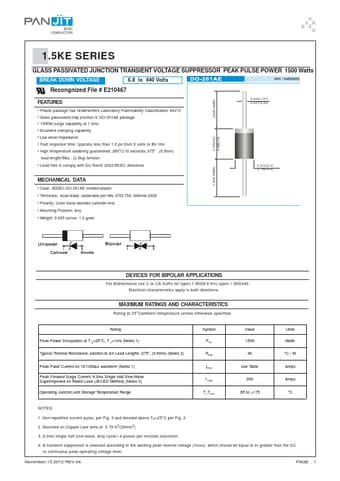

1.5KE SERIES GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR PEAK PULSE POWER 1500 Watts BREAK DOWN VOLTAGE 6.8 to 440 Volts Recongnized File # E210467 FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Glass passivated chip junction in DO-201AE package • 1500W surge capability at 1.0ms • Excellent clamping capability • Low zener impedance • Fast response time: typically less than 1.0 ps from 0 volts to BV min • High temperature soldering guaranteed: 260°C/10 seconds/.375" ,(9.5mm) lead length/5lbs., (2.3kg) tension • Lead free in comply with EU RoHS 2002/95/EC directives 0.375(9.5) 0.285(7.2) 1.0(25.4)MIN. 0.042(1.07) 0.037(0.94) 0.210(5.3) 0.188(4.8) 1.0(25.4)MIN.
