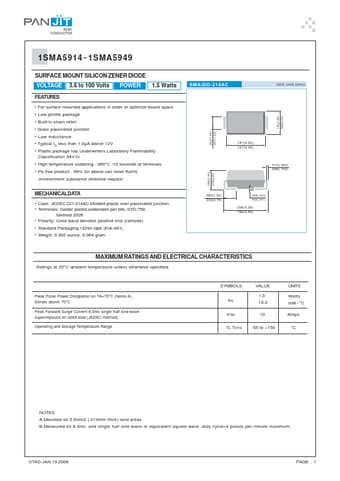

1SMA5921
FEATURES
- For surface mounted applications in order to optimize board space.
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Typical IR less than 1.0µA above 12V
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O
- High temperature soldering : 260°C /10 seconds at terminals
.096(2.44) .062(1.60) .047(1.20) .114(2.90) .098(2.50)
3.6 to 100 Volts
POWER
1.5 Watts
SMA/DO-214AC
Unit: inch (mm)
- Low profile package
.181(4.60) .157(4.00) environment substance directive request
MECHANICALDATA
- Case: JEDEC DO-214AC,Molded plastic over passivated junction.
- Terminals: Solder plated,solderable per MIL-STD-750, Method 2026
- Polarity: Color band denotes positive end (cathode)
- Standard Packaging:12mm tape (EIA-481)
- Weight: 0.002 ounce, 0.064 gram
.060(1.52) .030(0.76)
.078(2.00)
- Pb free product : 99% Sn above can meet Ro HS
.012(.305) .006(.152)
.008(.203) .002(.051)
.208(5.28) .188(4.80)
MAXIMUM RATINGS AND ELECTRICAL...
