BAV20WS-AU - SURFACE MOUNT SWITCHING DIODE

Download the BAV20WS-AU datasheet PDF. This datasheet also covers the BAV19WS-AU variant, as both devices belong to the same surface mount switching diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Fast switching speed.
  • Surface mount package ideally suited for automatic insertion.
  • Electrically identical to Standard JEDEC.
  • High conductance.
  • Acquire quality system certificate : TS16949.
  • AEC-Q101 qualified.
  • Lead free in compliance with EU RoHS 2011/65/EU directive.
  • Green molding compound as per IEC61249 Std. . (Halogen Free).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAV19WS-AU-PanJitInternational.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BAV20WS-G Small Signal Switching Diode Vishay
BAV20WS-G Switching Diode Taiwan Semiconductor
BAV20WS SURFACE MOUNT FAST SWITCHING DIODE SEMTECH
BAV20WS Silicon Diode BLUE ROCKET ELECTRONICS
BAV20WS SMALL SIGNAL DIODES General Semiconductor

Other Datasheets by PanJit Semiconductor

Part Number Description
BAV20 SWITCHING DIODES
BAV21 SWITCHING DIODES
BAV21WS-AU SURFACE MOUNT SWITCHING DIODE
BAV170 LOW LEAKAGE SWITCHING DIODES
BAV170-AU (BAV170-AU / BAV199-AU) LOW LEAKAGE SWITCHING DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

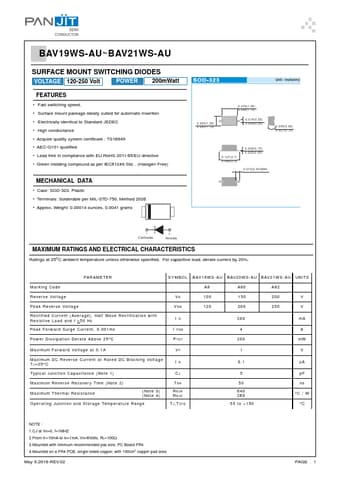

BAV19WS-AU~BAV21WS-AU SURFACE MOUNT SWITCHING DIODES VOLTAGE 120-250 Volt POWER 200mWatt FEATURES • Fast switching speed. • Surface mount package ideally suited for automatic insertion • Electrically identical to Standard JEDEC • High conductance • Acquire quality system certificate : TS16949 • AEC-Q101 qualified • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA • Case: SOD-323, Plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 0.00014 ounces, 0.0041 grams 0.054(1.35) 0.045(1.15) 0.078(1.95) 0.068(1.75) 0.014(0.35) 0.009(0.25) 0.036(0.90) 0.027(0.70) 0.107(2.7) 0.090(2.3) 0.006(0.15) 0.002(0.05) 0.012(0.30)MIN.
