BD640CS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • For surface mounted.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BD6422EFV Stepping Motor Drivers ROHM
BD6423EFV Stepping Motor Drivers ROHM
BD6425 Stepping Motor Drivers ROHM
BD643 SILICON POWER TRANSISTOR SavantIC
BD643 SILICON DARLINGTON POWER TRANSISTORS Comset Semiconductors

Other Datasheets by PanJit Semiconductor

Part Number Description
BD640CT SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
BD645CS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
BD645CT SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
BD6100CS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
BD6100CT SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

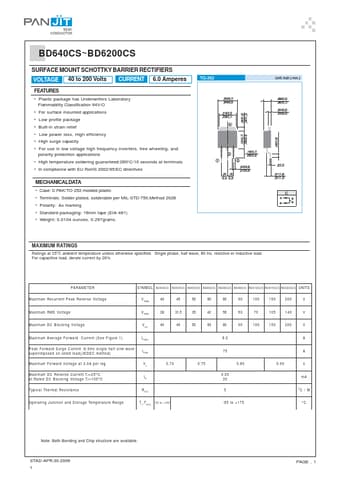

www.DataSheet.co.kr BD640CS~BD6200CS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • For surface mounted applications • Low profile package • Built-in strain relief • Low power loss, High efficiency • High surge capacity • For use in low voltage high frequency inverters, free wheeling, and polarity protection applications • High temperature soldering guaranteed:260oC/10 seconds at terminals • In compliance with EU RoHS 2002/95/EC directives 40 to 200 Volts CURRENT 6.0 Amperes MECHANICALDATA • Case: D PAK/TO-252 molded plastic • Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 • Polarity: As marking • Standard packaging: 16mm tape (EIA-481) • Weight: 0.0104 ounces, 0.297grams.
