MBR240 SCHOTTKY BARRIER RECTIFIERS

MBR240 Description

MBR240~MBR2200 SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volts CURRENT 2.0 Amperes .

MBR240 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* For use in low voltage,high frequency inverters ,free wheeling , and polarity protection ap

MBR240 Applications

* In compliance with EU RoHS 2002/95/EC directives MECHANICALDATA
* Case: DO-15 Molded plastic
* Terminals: Axial leads, solderable per MIL-STD-750,Method 2026
* Polarity: Color band denotes cathode
* Mounting Position: Any
* Weight: 0.014 ounces, 0.3

📥 Download Datasheet

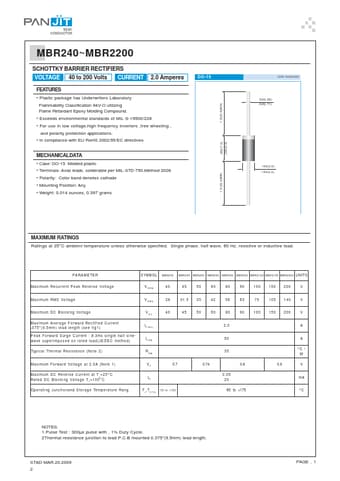

Preview of MBR240 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MBR240
Manufacturer
Pan Jit International
File Size
45.96 KB
Datasheet
MBR240-PanJitInternational.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
