MBR850CT - SCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the MBR850CT, a member of the MBR840CT SCHOTTKY BARRIER RECTIFIER family.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Low power loss, high efficiency.
  • Low forwrd voltge, high current capability.
  • High surge capacity.
  • For use in low voltage,high frequency inverters free wheeling , and polarlity protection.

📥 Download Datasheet

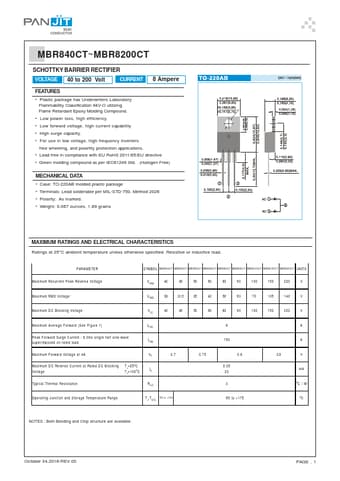

Datasheet preview – MBR850CT

Datasheet Details

Part number MBR850CT
Manufacturer PanJit Semiconductor
File Size 89.81 KB
Description SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet MBR850CT Datasheet
Additional preview pages of the MBR850CT datasheet.

📁 Similar Datasheet

  • MBR850CT - SCHOTTKY BARRIER RECTIFIER (E-DA)
  • MBR850 - 8.0A SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • MBR850 - Schottky Barrier Rectifiers (LGE)
  • MBR850 - Wide Temperature Range and High Tjm Schottky Barrier Rectifiers (Sirectifier Semiconductors)
  • MBR850 - SCHOTTKY BARRIER RECTIFIERS (HY ELECTRONIC)
  • MBR850NG - 8.0A Leaded Type Schottky Barrier Rectifiers (American First Semiconductor)
  • MBR80100 - SCHOTTKY DIODE MODULE (DACO SEMICONDUCTOR)
  • MBR80100 - 80 Amp Schottky Barrier Rectifier (MCC)
  • MBR80100 - (MBR8020 - MBR80100R) SCHOTTKY DIODES (TRANSYS)
  • MBR80100 - (MBR8045 - MBR80100R) Schottky Power Diode (Naina Semiconductor)
Other Datasheets by Pan Jit International
  • MBR850 - SCHOTTKY BARRIER RECTIFIERS
  • MBR850D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
  • MBR8100 - SCHOTTKY BARRIER RECTIFIERS
  • MBR8100CT - SCHOTTKY BARRIER RECTIFIER
  • MBR8100D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER
  • MBR8150 - SCHOTTKY BARRIER RECTIFIERS
  • MBR8150CT - SCHOTTKY BARRIER RECTIFIER
  • MBR8150D - SURFACE MOUNTSCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
MBR840CT~MBR8200CT SCHOTTKY BARRIER RECTIFIER VOLTAGE FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. • Exceeds environmental standards of MIL-S-19500/228 • Low power loss, high efficiency. • Low forwrd voltge, high current capability • High surge capacity. • For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications. .058(1.47) 40 to 200 Volts CURRENT 8 Ampere • In compliance with EU RoHS 2002/95/EC directives .042(1.07) MECHANICAL D ATA • Case: TO-220AB molded plastic package • Terminals: Lead solderable per MIL-STD-750, Method 2026 • Polarity: As marked. • Mounting Position: Any • Weight: 0.0655 ounces, 1.859 grams.
