MS120, MS14 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

MS120 Description

PRELIMINARY .047(1.20) MS14~MS120 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE 40 to 200 Volts CURRENT 1.0 Amperes .

MS120 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

MS120 Applications

* Low profile package
* Built-in strain relief
* Metal to silicon rectifier. majority carrier conduction
* Low power loss,high efficiency
* High surge capacity
* High current capacity ,low VF
* For use in low voltage high frequency inverters, f

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MS120, MS14. Please refer to the document for exact specifications by model.

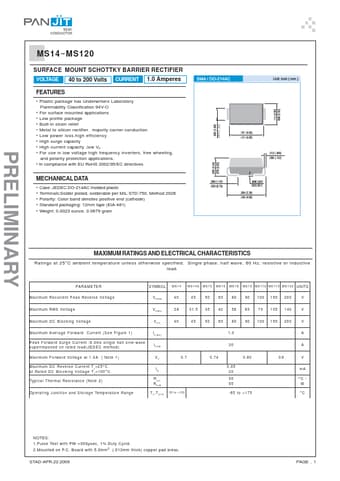

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MS120, MS14
Manufacturer
Pan Jit International
File Size
100.40 KB
Datasheet
MS14-PanJitInternational.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MS120, MS14.
Please refer to the document for exact specifications by model.
