SA220 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

This page provides the datasheet information for the SA220, a member of the SA20 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR family.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
  • Glass passivated chip junction in DO-15 package.
  • 500W surge capability at 1ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time: typically less than 1ps from 0 volts to BV min.
  • High temperature soldering guaranteed: 260°C/10 seconds/0.375" ,(9.5mm) lead length/5lbs. , (2.3kg) tension.
  • ESD IEC-61000-4-2 Air + 30kV, Contact + 3.

📥 Download Datasheet

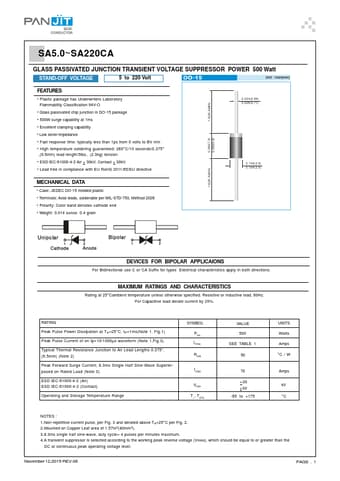

Datasheet preview – SA220
