SA220 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

This page provides the datasheet information for the SA220, a member of the SA200 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR family.

Features

  • 1.0(25.4)MIN. GLASS.

📥 Download Datasheet

Datasheet preview – SA220

Datasheet Details

Part number SA220
Manufacturer PanJit Semiconductor
File Size 141.56 KB
Description GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet SA220 Datasheet
Additional preview pages of the SA220 datasheet.

📁 Similar Datasheet

  • SA220 - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)
  • SA220 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (SEMITECH)
  • SA220 - TRANSIENT VOLTAGE SUPPRESSOR (DC COMPONENTS)
  • SA220 - 500W TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • SA220 - 500W TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • SA220A - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)
  • SA220A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (SEMITECH)
  • SA220A - TRANSIENT VOLTAGE SUPPRESSOR (DC COMPONENTS)
  • SA220A - 500W TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • SA220C - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)
Other Datasheets by Pan Jit International
  • SA220 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • SA220A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • SA220C - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • SA220CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • SA22 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • SA22A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • SA22C - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • SA22CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

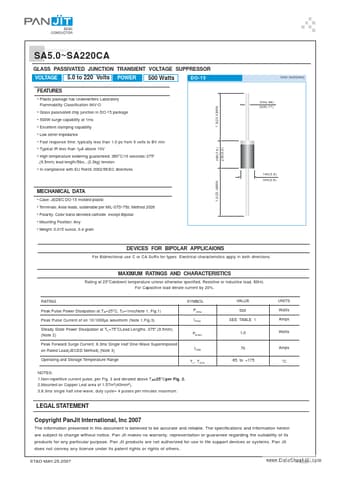

www.DataSheet4U.com SA5.0~SA220CA VOLTAGE FEATURES 1.0(25.4)MIN. GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR 5.0 to 220 Volts POWER 500 Watts DO-15 Unit: inch(mm) • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • Glass passivated chip junction in DO-15 package • 500W surge capability at 1ms • Excellent clamping capability • Low zener impedance • Fast response time: typically less than 1.0 ps from 0 volts to BV min .034(.86) .028(.71) .300(7.6) • Typical IR less than 1µA above 10V • High temperature soldering guaranteed: 260°C/10 seconds/.375" ,(9.5mm) lead length/5lbs., (2.3kg) tension • In compliance with EU RoHS 2002/95/EC directives .230(5.8) .140(3.
