UF104S - (UF100S - UF1010S) ULTRAFAST SWITCHING RECTIFIER

Download the UF104S datasheet PDF. This datasheet also covers the UF100S variant, as both devices belong to the same (uf100s - uf1010s) ultrafast switching rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • l Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing l l l l Flame Retardant Epoxy Molding Compound Void-free Plastic in A-405 package 1.0 ampere operation at TA=55 ¢J with no thermal runaway Exceeds environmental standards of MIL-S-19500/228 Ultra fast switching for high efficiency A-045.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UF100S_PanJitInternational.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
UF104S ULTRAFAST SWITCHING RECTIFIER TRSYS
UF104 ULTRAFAST SWITCHING RECTIFIER TRSYS
UF104 1A Leaded Type Ultra Fast Rectifiers CITC
UF104G ULTRAFAST SWITCHING RECTIFIER YS
UF100 ULTRAFAST SWITCHING RECTIFIER TRSYS

Other Datasheets by PanJit Semiconductor

Part Number Description
UF104 (UF100 - UF1010) ULTRAFAST SWITCHING RECTIFIER
UF104G GLASS PASSIVATED JUNCTION ULTRAFAST SWITCHING RECTIFIER
UF100 (UF100 - UF1010) ULTRAFAST SWITCHING RECTIFIER
UF1000 (UF1000 - UF1008) ULTRAFAST SWITCHING RECTIFIER
UF1000F (UF1000F - UF1008F) ULTRAFAST SWITCHING RECTIFIER

Full PDF Text Transcription

Click to expand full text

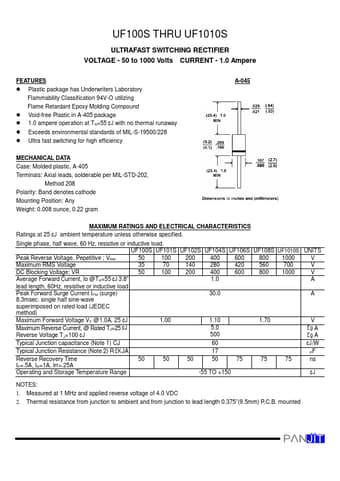

UF100S THRU UF1010S ULTRAFAST SWITCHING RECTIFIER VOLTAGE - 50 to 1000 Volts CURRENT - 1.0 Ampere FEATURES l Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing l l l l Flame Retardant Epoxy Molding Compound Void-free Plastic in A-405 package 1.0 ampere operation at TA=55 ¢J with no thermal runaway Exceeds environmental standards of MIL-S-19500/228 Ultra fast switching for high efficiency A-045 MECHANICAL DATA Case: Molded plastic, A-405 Terminals: Axial leads, solderable per MIL-STD-202, Method 208 Polarity: Band denotes cathode Mounting Position: Any Weight: 0.008 ounce, 0.22 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ¢J ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
