UF1603FCT - (UF1600FCT - UF1608FCT) ISOLATION ULTRAFST SWITCHING RECTIFIER

This page provides the datasheet information for the UF1603FCT, a member of the UF1600FCT (UF1600FCT - UF1608FCT) ISOLATION ULTRAFST SWITCHING RECTIFIER family.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O . Flame Retardant Epoxy Molding Compound.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Low power loss,high efficiency.
  • Low forward voltage, high current capability.
  • High surge capacity.
  • Ultra fast recovery times, high voltage. .112(2.85) .100(2.55) Unit: inch ( mm ) ITO-220AB .406(10.3) MAX .134(3.4) .118(3.0) .189(4.8)MAX .272(6.9) .248(6.3) .123(3.

📥 Download Datasheet

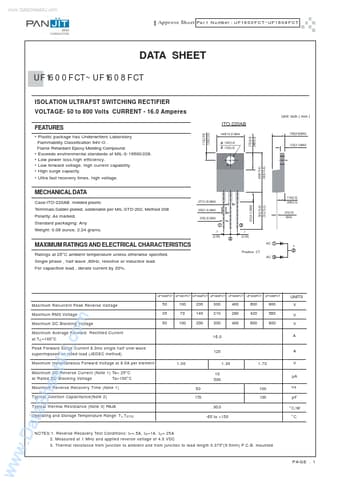

Datasheet preview – UF1603FCT
