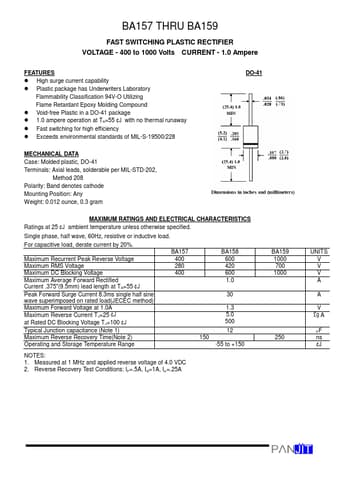

BA157 THRU BA159
FAST SWITCHING PLASTIC RECTIFIER VOLTAGE - 400 to 1000 Volts CURRENT - 1.0 Ampere
FEATURES l High surge current capability l Plastic package has Underwriters Laboratory Flammability Classification 94V-O Utilizing Flame Retardant Epoxy Molding Compound l Void-free Plastic in a DO-41 package l 1.0 ampere operation at TA=55 ¢J with no thermal runaway l l Fast switching for high efficiency Exceeds environmental standards of MIL-S-19500/228 DO-41
MECHANICAL DATA Case: Molded plastic, DO-41 Terminals: Axial leads, solderable per MIL-STD-202, Method 208 Polarity: Band denotes cathode Mounting Position: Any Weight: 0.012 ounce, 0.3 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ¢J ambient temperature unless otherwise specified.
