SB150 - 1 AMPERE SCHOTTKY BARRIER RECTIFIERS(VOLTAGE 50 to 100 Volts CURRENT - 1.0 Ampere)

Features

  • 1.0 ( 25.4 ) MIN.

📥 Download Datasheet

Datasheet preview – SB150

Datasheet Details

Part number SB150
Manufacturer Pan Jit International Inc.
File Size 45.63 KB
Description 1 AMPERE SCHOTTKY BARRIER RECTIFIERS(VOLTAGE 50 to 100 Volts CURRENT - 1.0 Ampere)
Datasheet download datasheet SB150 Datasheet
Additional preview pages of the SB150 datasheet.

📁 Similar Datasheet

  • SB150 - 1.0A SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • SB150 - SCHOTTKY BARRIER RECTIFIER (GOOD-ARK Electronics)
  • SB150 - 1.0A SCHOTTKY BARRIER RECTIFIER (SANGDEST MICROELECTRONICS)
  • SB150 - Schottky Barrier Plastic Rectifier (Vishay)
  • SB150 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC)
  • SB150 - Schottky Rectifiers (Fairchild Semiconductor)
  • SB150 - Schottky barrier rectifiers diodes (Semikron)
  • SB150 - Schottky Barrier Rectifiers (LRC)
  • SB150 - 1.0A SCHOTTKY BARRIER DIODE (WON-TOP)
  • SB150 - SCHOTTKY BARRIER RECTIFIERS (CDIL)
Other Datasheets by Pan Jit International Inc.

Full PDF Text Transcription

Click to expand full text

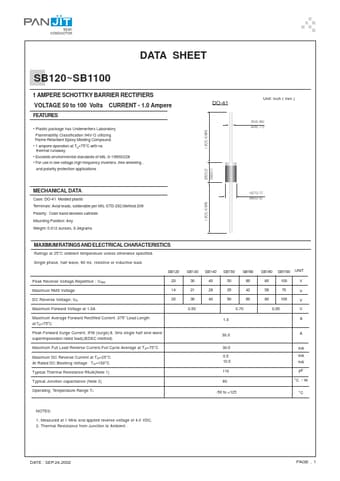

DATA SHEET SB120~SB1100 1 AMPERE SCHOTTKY BARRIER RECTIFIERS VOLTAGE 50 to 100 Volts FEATURES 1.0 ( 25.4 ) MIN. CURRENT - 1.0 Ampere DO-41 Unit: inch ( mm ) • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. • 1 ampere operation at TA=75°C with no thermal runaway. • Exceeds environmental standards of MIL-S-19500/228 • For use in low voltage,high frequency inverters ,free wheeling , and polarity protection applications . .034 ( .86 ) .028 ( .71 ) MECHANICAL DATA Terminals: Axial leads, solderable per MIL-STD-202,Method 208 Polarity: Color band denotes cathode Mounting Position: Any Weight: 0.012 ounces, 0.34grams 1.0 ( 25.4 ) MIN. .205(5.2) .160(4.1) Case: DO-41 Molded plastic .107 ( 2.7 ) .080 ( 2.
