50SEK68M Datasheet PDF (Conductive Polymer Aluminum Solid Capacitors)

50SEK68M - Conductive Polymer Aluminum Solid Capacitors

This page provides the datasheet information for the 50SEK68M, a member of the 50SEK22M Conductive Polymer Aluminum Solid Capacitors family.

Features

High voltage (50 V. DC max. ).
RoHS compliance, Halogen free.
125 °C 1000 h Specifications Size code Category temperature range C6 E7 E12.
55 °C to +125 °C Rated voltage range 25 V. DC to 50 V. DC Rated capacitance range 22 μF to 82 μF 33 μF to 120 μF 68 μF to 270 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation factor (tan d) Please see the attached characteristics list +125 °C, 1000 h,.

Datasheet Details

Part number	50SEK68M
Manufacturer	Panasonic
File Size	185.21 KB
Description	Conductive Polymer Aluminum Solid Capacitors
Datasheet	50SEK68M Datasheet

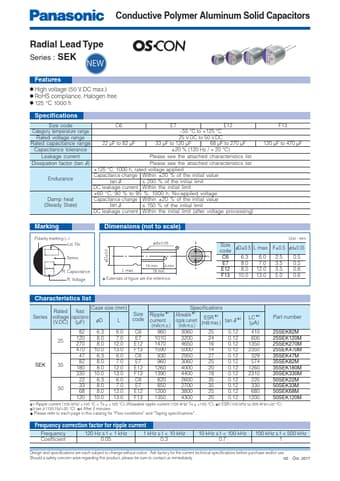

Additional preview pages of the 50SEK68M datasheet.

📁 Similar Datasheet

50SEV22M - MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS (RUBYCON CORPORATION)

50S380CE - Power Transistor (Infineon)

50SHE - Single Turn Servo Mount Hall Effect Sensor (Vishay)

50SQ - SCHOTTKY RECTIFIER (International Rectifier)

50SQ045 - SCHOTTKY RECTIFIER (International Rectifier)

50SQ060 - SCHOTTKY RECTIFIER (International Rectifier)

50SQ060G - Schottky Rectifier (Vishay)

50SQ080 - SCHOTTKY RECTIFIER (International Rectifier)

50SQ080G - Schottky Rectifier (Vishay)

50SQ100 - SCHOTTKY RECTIFIER (International Rectifier)

Full PDF Text Transcription

Click to expand full text

Conductive Polymer Aluminum Solid Capacitors Radial Lead Type Series : SEK Features ● High voltage (50 V.DC max.) ● RoHS compliance, Halogen free ● 125 °C 1000 h Specifications Size code Category temperature range C6 E7 E12 –55 °C to +125 °C Rated voltage range 25 V.DC to 50 V.
