AYF53 Datasheet | Panasonic

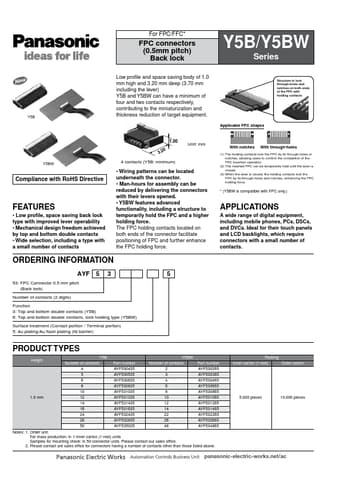

For FPC/FFC- FPC connectors (0.5mm pitch) Back lock New Low profile and space saving body of 1.0 mm high and 3.20 mm deep (3.70 mm including the lever) Y5B and Y5BW can have a minimum of four and two contacts respectively, contributing to the miniaturization and thickness reduction of target equipment. Y5B/Y5BW Series Structure to lock through-holes and notches on both ends of the FPC with holding contacts Y5B Applicable FPC shapes Unit: mm 0 3.2 Y5BW With notches With through-holes 4 contacts (Y5B: minimum) FPC connectors pliance with Ro HS Directive Features - Low profile, space saving back lock type with improved lever operability - Mechanical design freedom achieved by top and bottom double contacts - Wide selection, including a type with a small number of contacts - Wiring patterns can be located underneath the connector. - Man-hours for assembly can be reduced by delivering the connectors with their levers opened. - Y5BW Features advanced functionality, including a structure to temporarily hold the FPC and a higher holding force. The FPC holding contacts located on both ends of the connector facilitate positioning of FPC and further enhance the FPC holding force. .Data Sheet.co.kr (1) The holding contacts lock the FPC by its through-holes or notches, allowing users to confirm the pletion of the FPC insertion operation. (2) The inserted FPC can be temporarily held until the lever is closed. (3) When the lever is closed, the holding contacts lock the FPC by its through-holes and notches, enhancing the FPC holding force. - (Y5BW is patible with FPC only.) APPLICATIONS A wide range of digital equipment, including mobile phones, PCs, DSCs, and DVCs. Ideal for their touch panels and LCD backlights, which require connectors with a small number of contacts. ORDERING INFORMATION AYF...
