EEETP1K391V, EEETP1E182M - Aluminum Electrolytic Capacitors

Panasonic

📥 Download Datasheet

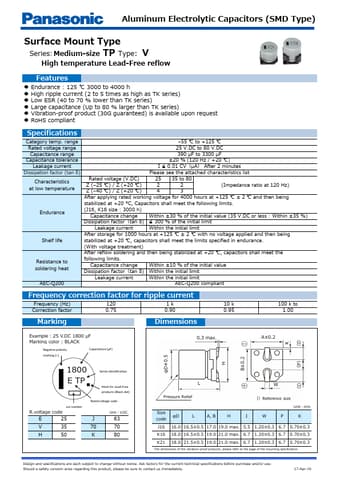

EEETP1K391V Datasheet Preview — This datasheet PDF includes multiple part numbers: EEETP1K391V, EEETP1E182M. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EEETP1K391V, EEETP1E182M
Manufacturer	Panasonic ↗
File Size	463.39 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	EEETP1E182M-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: EEETP1K391V, EEETP1E182M. Please refer to the document for exact specifications by model.

EEETP1K391V Product details

Features

Endurance : 125 ℃ 3000 to 4000 h.
High ripple current (2 to 5 times as high as TK series).
Low ESR (40 to 70 % lower than TK series).
Large capacitance (Up to 80 % larger than TK series).
Vibration-proof product (30G guaranteed) is available upon request.
RoHS compliant Specifications Category temp. range.
55 ℃ to +125 ℃ Rated voltage range 25 V. DC to 80 V. DC Capacitance range 390 μF to 3300 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) Leakage.
