EETHC1K562LJ - Aluminum Electrolytic Capacitors

This page provides the datasheet information for the EETHC1K562LJ, a member of the EETHC1A123HJ Aluminum Electrolytic Capacitors family.

Features

  • s.
  • Endurance : 105 °C 2000 h.
  • 30 % smaller than series TS-HB.
  • RoHS directive compliant.
  • Specifications Category Temp. Range Rated W. V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan d.
  • 40 °C to +105 °C 10 V. DC to 100 V. DC 160 V. DC to 250 V. DC 820 μF to 100000 μF 150 μF to 3300 μF ±20 % (120 Hz/+20 °C).
  • 25 °C to +105 °C 315 V. DC to 450 V. DC 39 μF to 1000 μF 3√ CV (μA) max. After 5 minutes.

📥 Download Datasheet

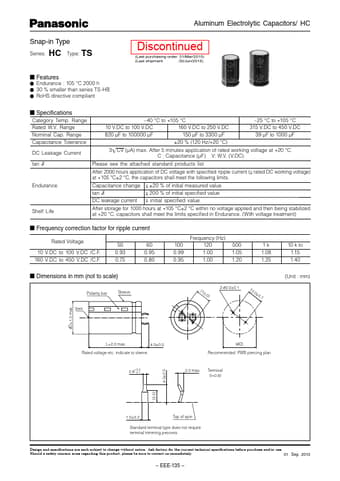

Datasheet preview – EETHC1K562LJ

Datasheet Details

Part number EETHC1K562LJ
Manufacturer Panasonic
File Size 672.54 KB
Description Aluminum Electrolytic Capacitors
Datasheet download datasheet EETHC1K562LJ Datasheet
Additional preview pages of the EETHC1K562LJ datasheet.

📁 Similar Datasheet

  • EETHC2C102BA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C102CA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C102DA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C122BA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C122CA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C122DA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C122EA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C152CA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C152DA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
  • EETHC2C152EA - Large Can Aluminum Electrolytic Capacitors (Panasonic Semiconductor)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text
Aluminum Electrolytic Capacitors/ HC Snap-in Type Series: HC Type: TS Discontinued ■ Features ● Endurance : 105 °C 2000 h ● 30 % smaller than series TS-HB ● RoHS directive compliant ■ Specifications Category Temp. Range Rated W.V. Range Nominal Cap. Range Capacitance Tolerance DC Leakage Current tan d –40 °C to +105 °C 10 V.DC to 100 V.DC 160 V.DC to 250 V.DC 820 μF to 100000 μF 150 μF to 3300 μF ±20 % (120 Hz/+20 °C) –25 °C to +105 °C 315 V.DC to 450 V.DC 39 μF to 1000 μF 3√ CV (μA) max. After 5 minutes application of rated working voltage at +20 °C. C : Capacitance (μF) V: W.V. (V.
