ELJFB151xF - Fixed Inductors

Download the ELJFB151xF datasheet PDF (ELJFAR82F2 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for fixed inductors.

Features

  • s General use wire wound and resin molded chip inductor. Corespond to Re-flowsoldering and flow soldering. Wide line-up from 2520 size to 4532 size. Good for mounting.
  • Recommended.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ELJFAR82F2_Panasonic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • ELJ-750-629 - Jumbo-LED (EPIGAP)
  • ELJEA100KF - Chip inductors (Panasonic Semiconductor)
  • ELJEA101KF - Chip inductors (Panasonic Semiconductor)
  • ELJEA150KF - Chip inductors (Panasonic Semiconductor)
  • ELJEA151KF - Chip inductors (Panasonic Semiconductor)
  • ELJEA1R0MF - Chip inductors (Panasonic Semiconductor)
  • ELJEA1R5MF - Chip inductors (Panasonic Semiconductor)
  • ELJEA220KF - Chip inductors (Panasonic Semiconductor)
  • ELJEA221KF - Chip inductors (Panasonic Semiconductor)
  • ELJEA2R2MF - Chip inductors (Panasonic Semiconductor)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text

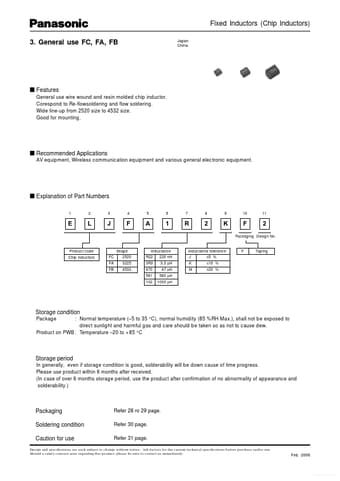

Fixed Inductors (Chip Inductors) 3. General use FC, FA, FB Japan China ■ Features General use wire wound and resin molded chip inductor. Corespond to Re-flowsoldering and flow soldering. Wide line-up from 2520 size to 4532 size. Good for mounting. ■ Recommended Applications AV equipment, Wireless communication equipment and various general electronic equipment. ■ Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 E L J F A 1 R 2 K F 2 Packaging Design No. Product code Chip Inductors FC FA FB Shape 2520 3225 4532 Inductance R22 3R3 470 561 102 220 nH 3.3 µH 47 µH 560 µH 1000 µH Inductance tolerance J K M ±5 % ±10 % ±20 % F Taping Storage condition : Normal temperature (–5 to 35 °C), normal humidity (85 %RH Max.
