MN103SFC2D - Microcomputers

This page provides the datasheet information for the MN103SFC2D, a member of the MN103SC2A Microcomputers family.

📥 Download Datasheet

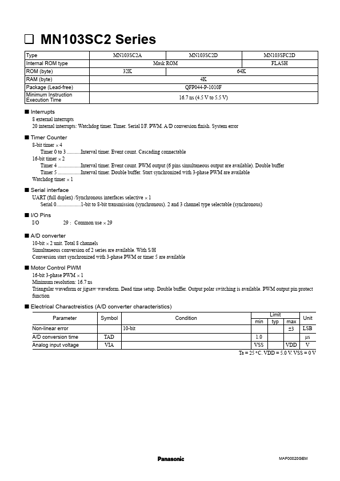

Datasheet preview – MN103SFC2D

Datasheet Details

Part number MN103SFC2D
Manufacturer Panasonic
File Size 302.64 KB
Description Microcomputers
Datasheet download datasheet MN103SFC2D Datasheet
Additional preview pages of the MN103SFC2D datasheet.

📁 Similar Datasheet

  • MN103SF66R - 32-bit Microcomputers (Panasonic Industrial)
  • MN103SF77R - 32-bit Microcomputers (Panasonic Industrial)
  • MN103S33N - Microcontroller (Matsushita Electric)
  • MN103S52G - 32 Bit Microcomputer for Inverter Control (Matsushita)
  • MN103E0600YD - Microcomputers/Controllers (Matsushita)
  • MN103L09 - 32-bit Single-chip Microcontroller (Panasonic Semiconductor)
  • MN103L10 - 32-bit Single-chip Microcontroller (Panasonic Semiconductor)
  • MN103L11 - 32-bit Single-chip Microcontroller (Panasonic Semiconductor)
  • MN103L12 - 32-bit Single-chip Microcontroller (Panasonic Semiconductor)
  • MN103L13 - 32-bit Single-chip Microcontroller (Panasonic Semiconductor)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text
MN103SC2 Series Type Internal ROM type ROM (byte) RAM (byte) Package (Lead-free) Minimum Instruction Execution Time MN103SC2A 32K Mask ROM MN103SC2D 4K QFP044-P-1010F 16.7 ns (4.5 V to 5.5 V) 64K MN103SFC2D FLASH  Interrupts 8 external interrupts 20 internal interrupts: Watchdog timer. Timer. Serial I/F. PWM. A/D conversion finish. System error  Timer Counter 8-bit timer × 4 Timer 0 to 3 ...........Interval timer. Event count. Cascading connectable 16-bit timer × 2 Timer 4 ..................Interval timer. Event count. PWM output (6 pins simultaneous output are available). Double buffer Timer 5 ..................Interval timer. Double buffer.
