TXS2-6V, TXS2-LT-3V TX-S RELAYS

TXS2-6V Description

TX-S Very High Sensitivity, 50 mW (nominal operating) Rely with LT style pin layout 3.High contact reliability High contact reliability is achieved b.

TXS2-6V Features

* 1. Nominal operating power: High sensitivity of 50 mW By using the highly efficient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 50 mW (minimum operating power of 32 mW) has been achieved. 2. Compact size 15.0(L)  7.4(W)  8.2(H) .591(L)  .291(W)  .323(H) TYPIC

TXS2-6V Applications

* 1. Communications (XDSL, Transmission) 2. Measurement 3. Security 4. Home appliances, and audio/visual equipment 5. Automotive equipment 6. Medical equipment ORDERING INFORMATION TXS 2 Contact arrangement 2: 2 Form C Surface-mount availability Nil: Standard PC board terminal type SA: SA type SS: SS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TXS2-6V, TXS2-LT-3V. Please refer to the document for exact specifications by model.

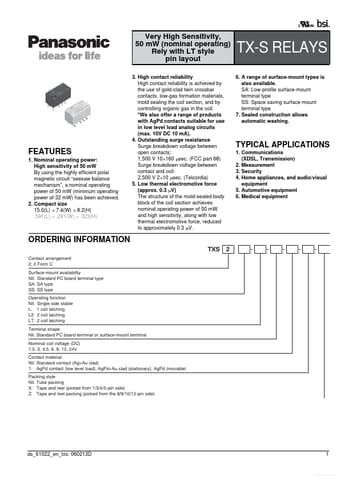

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TXS2-6V, TXS2-LT-3V
Manufacturer
Panasonic
File Size
3.65 MB
Datasheet
TXS2-LT-3V_Panasonic.pdf
Description
TX-S RELAYS
Note
This datasheet PDF includes multiple part numbers: TXS2-6V, TXS2-LT-3V.
Please refer to the document for exact specifications by model.
