EETHC2W181CA - Large Can Aluminum Electrolytic Capacitors

Download the EETHC2W181CA datasheet PDF. This datasheet also covers the EETHC2G101BA variant, as both devices belong to the same large can aluminum electrolytic capacitors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EETHC2G101BA_PanasonicSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EETHC2W181CA
Manufacturer Panasonic
File Size 365.68 KB
Description Large Can Aluminum Electrolytic Capacitors
Datasheet download datasheet EETHC2W181CA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EETHC2W181HJ Aluminum Electrolytic Capacitors Panasonic
EETHC2W181JC Aluminum Electrolytic Capacitors Panasonic
EETHC2W181JJ Aluminum Electrolytic Capacitors Panasonic
EETHC2W181KC Aluminum Electrolytic Capacitors Panasonic
EETHC2W181KJ Aluminum Electrolytic Capacitors Panasonic

Other Datasheets by Panasonic

Part Number Description
EETHC2W181BA Large Can Aluminum Electrolytic Capacitors
EETHC2W181DA Large Can Aluminum Electrolytic Capacitors
EETHC2W101BA Large Can Aluminum Electrolytic Capacitors
EETHC2W101CA Large Can Aluminum Electrolytic Capacitors
EETHC2W121BA Large Can Aluminum Electrolytic Capacitors

Full PDF Text Transcription

Click to expand full text

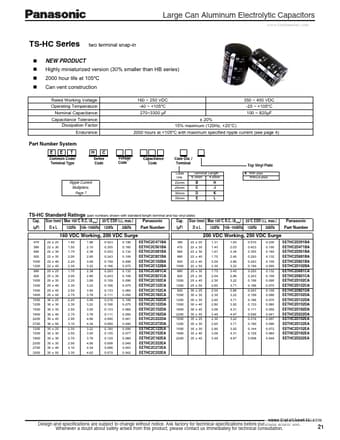

Large Can Aluminum Electrolytic Capacitors www.DataSheet4U.com TS-HC Series NEW PRODUCT two terminal snap-in Highly miniaturized version (30% smaller than HB series) 2000 hour life at 105ºC Can vent construction Rated Working Voltage: Operating Temperature: Nominal Capacitance: Capacitance Tolerance: Dissipation Factor: Endurance: 160 ~ 250 VDC -40 ~ +105ºC 270~3300 µF 350 ~ 450 VDC -25 ~ +105ºC 100 ~ 820µF ± 20% 15% maximum (120Hz, +20°C) 2000 hours at +105ºC with maximum specified ripple current (see page 4) Part Number System E E T H C Voltage Code Capacitance Code Case Dia. / Terminal Case Dia. Ripple Current Multipliers: Page 7 22mm 25mm 30mm 35mm Terminal Length 6.3mm 4.
