_ _ _ _ _J 1N3889 to 1N3892

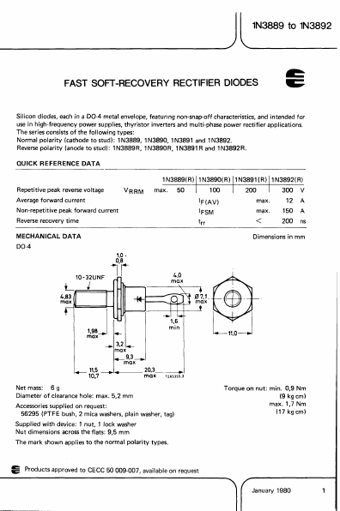

FAST SOFT-RECOVERY RECTIFIER DIODES
Silicon diodes, each in a 00-4 metal envelope, featuring non-snap-off characteristics, and intended for use in high-frequency power supplies, thyristor inverters and mUlti-phase power rectifier applications. The series consists of the following types: Normal polarity (cathode to stud): 1N3889, 1N3890, 1N3891 and 1N3892. Reverse polarity (anode to stud): 1N3889R, 1N3890R, 1N3891 Rand 1N3892R.
QUICK REFERENCE DATA
Repetitive peak reverse voltage Average forward current Non-repetitive peak forward current Reverse recovery time
MECHANICAL DATA 00-4
1,0 -
0,8
-'/1"
1N3889(R) max. 50
IFSM trr
4,0 max
1N3892(R)
300 V
max.
12 A
max.
<
150 A 200 ns
Dimensions in mm
4,83 max
+
.... 3,2 __
max
_9,3_ max
___ 11,5 _+_I..
1N3889 Datasheet
