74HCT1G02, 2-input NOR gate

The 74HC1G/HCT1G02 is a high speed Si-gate CMOS device. The 74HC1G/HCT1G02 provides the 2-input NOR function. The standard output currents are half the values compared to the 74HC/HCT02. FUNCTION TABLE See note 1. INPUTS inA L L H H Note 1. H = HIGH voltage level; L = LOW voltage level. inB L H L H .

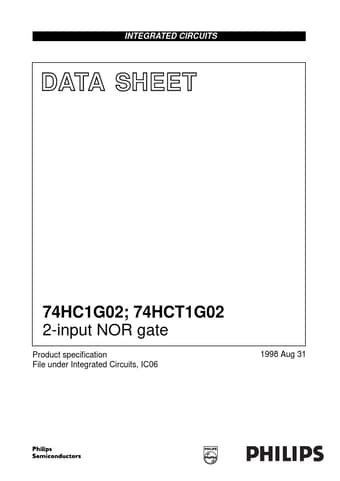

datasheet Preview Page 1 from Datasheet4u.com
