74HCT21 Datasheet - Philips

Dual 4-input AND gate

74HCT21 General Description

74HC/HCT21 The 74HC/HCT21 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT21 provide the 4-input AND function. QUICK REFERENCE DATA GND = 0 V; Tamb = 25 °C; tr = tf = 6 ns TYPI.

74HCT21 Datasheet (33.55 KB)

Preview of 74HCT21 PDF

Datasheet Details

Part number:

74HCT21

Manufacturer:

Philips

File Size:

33.55 KB

Description:

Dual 4-input and gate.

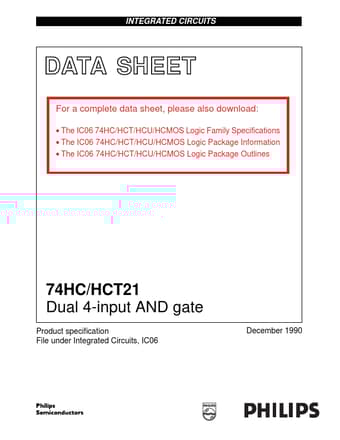

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications
