TDA8920TH - Class-D audio amplifier 2 x 80W Single chip

Description

The TDA8920 is a high efficiency class-D audio power amplifier.

Typical output power is 2 x 80 W and it operates with high efficiency and very low dissipation.

The device comes in a HSOP24 power package with a small internal heatsink.

Features

  • - High efficiency (~90%) - Operating voltage from +12.5 V to + 30V - Very low quiescent current - Low distortion - Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL) - Fixed gain of 30 dB in Single Ended (SE) and 36 dB in Bridge-Tied-Load (BTL) - High output power - Good ripple re.

📥 Download Datasheet

📁 Similar Datasheet

  • TDA8920 - 2 x 50 W class-D power amplifier (NXP)
  • TDA8920B - 2 X 100 W class-D power amplifier (NXP)
  • TDA8920C - 2 x 110 W class-D power amplifier (NXP)
  • TDA8922 - 2 x 25 W class-D power amplifier (NXP)
  • TDA8922B - 2 X 50 W class-D power amplifier (NXP Semiconductors)
  • TDA8922C - 2 x 75 W class-D power amplifier (NXP)
  • TDA8922CJ - 2 x 75 W class-D power amplifier (NXP)
  • TDA8922CTH - 2 x 75 W class-D power amplifier (NXP)
  • TDA8924 - 2 x 120 W class-D power amplifier (NXP)
  • TDA8925 - Power stage 2 x 15 to 25Wclass-D audio amplifier (NXP Semiconductors)
Other Datasheets by Philips
  • TDA8921TH - Class-D audio amplifier 2 x 50W single chip
  • TDA8944AJ - 2 x 7 W BTL audio amplifier
  • TDA8946AJ - 2 x 15 W BTL audio amplifier
  • TDA8060ATS - Satellite ZERO-IF QPSK down-converter
  • TDA8559T - Low-voltage stereo headphone amplifier
  • TDA8577 - Dual common-mode rejection differential line receiver
  • TDA8588AJ - Power Amplifier and Multiple Voltage Regulator
  • TDA8588BJ - Power Amplifier and Multiple Voltage Regulator

Full PDF Text Transcription

Click to expand full text

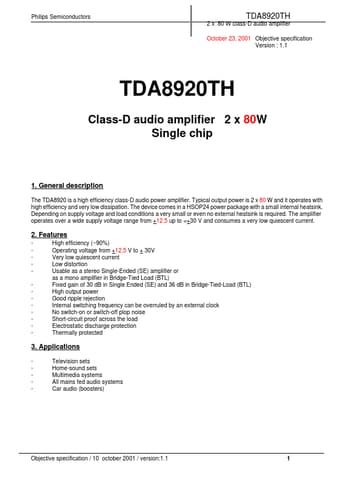

Philips Semiconductors TDA8920TH 2 x 80 W class-D audio amplifier October 23, 2001 Objective specification Version : 1.1 TDA8920TH Class-D audio amplifier 2 x 80W Single chip 1. General description The TDA8920 is a high efficiency class-D audio power amplifier. Typical output power is 2 x 80 W and it operates with high efficiency and very low dissipation. The device comes in a HSOP24 power package with a small internal heatsink. Depending on supply voltage and load conditions a very small or even no external heatsink is required. The amplifier operates over a wide supply voltage range from +12.5 up to =+30 V and consumes a very low quiescent current. 2. Features - High efficiency (~90%) - Operating voltage from +12.
