PAW3515DB USB OPTICAL MOUSE SINGLE CHIP

PAW3515DB Description

PAW3515DB SERIES PAW3515DB SERIES USB OPTICAL MOUSE SINGLE CHIP General .
The PAW3515DB is an ultra low cost CMOS process optical mouse sensor single chip with USB interface that serves as a non-mechanical motion estimation.

PAW3515DB Features

* Key Specification ‰ USB interface ‰ Single power supply Power Supply Wide operating supply range 4.25V ~ 5.5V ‰ Optical motion estimation technology Interface ‰ Complete 2-D motion sensor ‰ Accurate motion estimation over a wide range of Optical Lens surfaces Speed ‰ High speed motion det

📥 Download Datasheet

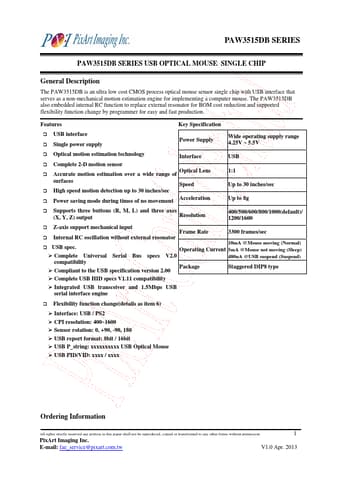

Preview of PAW3515DB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAW3515DB
Manufacturer
PixArt
File Size
356.64 KB
Datasheet
PAW3515DB-PixArt.pdf
Description
USB OPTICAL MOUSE SINGLE CHIP
