PT6306 - 3AMP HIGH-PERFORMANCE ADJUSTABLE ISR

This page provides the datasheet information for the PT6306, a member of the PT6305 3AMP HIGH-PERFORMANCE ADJUSTABLE ISR family.

📥 Download Datasheet

Datasheet preview – PT6306

Datasheet Details

Part number PT6306
Manufacturer Power Trend
File Size 332.38 KB
Description 3AMP HIGH-PERFORMANCE ADJUSTABLE ISR
Datasheet download datasheet PT6306 Datasheet
Additional preview pages of the PT6306 datasheet.

📁 Similar Datasheet

  • PT6302 - VFD Driver/Controller (PTC)
  • PT6302 - lithium-ion/lithium-polymer battery protection (ChipSourceTek)
  • PT6302S - 2-series lithium-ion/lithium-polymer battery protection (PowTech)
  • PT6303 - lithium-ion/lithium polymer battery protection (ChipSourceTek)
  • PT6303S - 3-series lithium-ion/lithium-polymer battery protection (PowTech)
  • PT6307 - 4 to 7 series lithium-ion/lithium-polymer battery protection (Powtech)
  • PT6307E - 5-7 Cell Lithium-Ion / Lithium-Polymer Battery Protection (CR Micro)
  • PT6311 - VFD Driver/Controller (Princeton Technology Corp)
  • PT6312 - VFD Driver/Controller (Princeton Technology Corp)
  • PT6312B - VFD Driver/Controller (Princeton Technology)
Other Datasheets by Power Trend
  • PT6300 - 3Amp Adjustable Positive Step-down Integrated Switching Regulators
  • PT6302 - 3Amp Adjustable Positive Step-down Integrated Switching Regulators
  • PT6303 - 3Amp Adjustable Positive Step-down Integrated Switching Regulators
  • PT6304 - 3Amp Adjustable Positive Step-down Integrated Switching Regulators
  • PT6305 - 3AMP HIGH-PERFORMANCE ADJUSTABLE ISR
  • PT6307 - 3AMP HIGH-PERFORMANCE ADJUSTABLE ISR
  • PT6308 - 3AMP HIGH-PERFORMANCE ADJUSTABLE ISR
  • PT6314 - 3Amp Adjustable Positive Step-down Integrated Switching Regulators

Full PDF Text Transcription

Click to expand full text

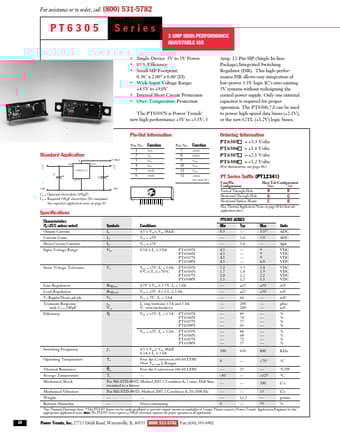

For assistance or to order, call (800) 531-5782 PT6305 Series 3 AMP HIGH-PERFORMANCE ADJUSTABLE ISR • Single-Device 5V to 3V Power • 85% Efficiency • Small SIP Footprint: 0.36" x 2.00” x 0.60"(H) • Wide Input Voltage Range: +4.5V to +9.0V • Internal Short Circuit Protection • Over-Temperature Protection The PT6305N is Power Trends’ new high performance +5V to +3.3V, 3 Amp, 12-Pin SIP (Single In-linePackage) Integrated Switching Regulator (ISR). This high-performance ISR allows easy integration of low-power 3.3V logic IC’s into existing 5V systems without redesigning the central power supply. Only one external capacitor is required for proper operation. The PT6306,7,8 can be used to power high-speed data buses (+2.1V), or the new GTL (+1.2V) logic buses.
