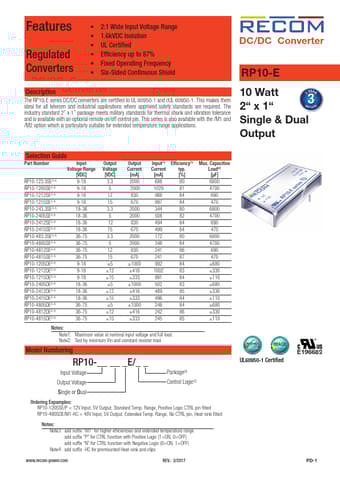

RP10-1212SE Datasheet Preview

RP10-1212SE Datasheet

DC/DC Converter

No Preview Available !

RP10-1212SE pdf
Features
Regulated
Converters
• 2:1 Wide Input Voltage Range
• 1.6kVDC Isolation
• UL Certified
• Efficiency up to 87%
• Fixed Operating Frequency
• Six-Sided Continuous Shield
DC/DC Converter
RP10-E
Description
The RP10-E series DC/DC converters are certified to UL 60950-1 and cUL 60950-1. This makes them
ideal for all telecom and industrial applications where approved safety standards are required. The
industry standard 2” x 1” package meets military standards for thermal shock and vibration tolerance
and is available with an optional remote on/off control pin. This series is also available with the /M1 and
/M2 option which is particularly suitable for extended temperature range applications.
10 Watt
2“ x 1“
33 YEAR
warranty
Single & Dual
Output
Selection Guide
Part Number
Input
Output Output Input(1) Efficiency(1) Max. Capacitive
Voltage Range Voltage Current Current typ.
Load(2)
[VDC] [VDC] [mA] [mA] [%] [µF]
RP10-123.3SE(3,4) 9-18 3.3 2000 688 80 6800
RP10-1205SE(3,4)
9-18
5
2000 1029
81
4700
RP10-1212SE(3,4) 9-18 12 830 988 84 690
RP10-1215SE(3,4) 9-18 15 670 997 84 470
RP10-243.3SE(3,4)
18-36
3.3 2000
344
80
6800
RP10-2405SE(3,4) 18-36 5 2000 508 82 4700
RP10-2412SE(3,4)
18-36
12 830 494 84
690
RP10-2415SE(3,4) 18-36 15 670 499 84 470
RP10-483.3SE(3,4) 36-75 3.3 2000 172 80 6800
RP10-4805SE(3,4)
36-75
5
2000
248
84
4700
RP10-4812SE(3,4) 36-75 12 830 241 86 690
RP10-4815SE(3,4) 36-75 15 670 241 87 470
RP10-1205DE(3,4)
9-18
±5 ±1000 992
84
±680
RP10-1212DE(3,4) 9-18 ±12 ±416 1002 83 ±330
RP10-1215DE(3,4) 9-18 ±15 ±333 991 84 ±110
RP10-2405DE(3,4) 18-36 ±5 ±1000 502 83 ±680
RP10-2412DE(3,4)
18-36
±12 ±416 489
85
±330
RP10-2415DE(3,4)
18-36
±15 ±333 496
84
±110
RP10-4805DE(3,4) 36-75 ±5 ±1000 248 84 ±680
RP10-4812DE(3,4)
36-75
±12 ±416 242
86
±330
RP10-4815DE(3,4) 36-75 ±15 ±333 245 85 ±110
Notes:
Note1: Maximum value at nominal input voltage and full load.
Note2: Test by minimum Vin and constant resistor load.
Model Numbering
RP10-__ __ _E/_ _
Input Voltage
Package(4)
Output Voltage
Control Logic(3)
Single or Dual
Ordering Expamples:
RP10-1205SE/P = 12V Input, 5V Output, Standard Temp. Range, Positive Logic CTRL pin fitted
RP10-4805DE/M1-HC = 48V Input, 5V Output, Extended Temp. Range, No CTRL pin, Heat-sink fitted
Notes:
Note3: add suffix “M1” for higher efficiencies and extended temperature range
add suffix “P” for CTRL function with Positive Logic (1=ON, 0=OFF)
add suffix “N” for CTRL function with Negative Logic (0=ON, 1=OFF)
Note4: add suffix -HC for premounted Heat-sink and clips
www.recom-power.com
REV.: 2/2017
UL60950-1 Certified
E196683
PD-1



RECOM
RECOM

RP10-1212SE Datasheet Preview

RP10-1212SE Datasheet

DC/DC Converter

No Preview Available !

RP10-1212SE pdf
DC/DC Converter
Specifications measured at Ta = 25°C, nominal input voltage, full load otherwise noted
BASIC CHARACTERISTICS
Parameter
Input Voltage Range
Under Voltage Lockout (UVLO)
Input Filter
Input Reflected Ripple Current(5)
Input Surge Voltage
Start-up time
Operating Frequency Range
Minimum Load (6)
Ripple and Noise
Remote ON/OFF(7)
Input current of Remote pin (CTRL)
Condition
nom. Vin = 12V
nom. Vin = 24V
nom. Vin = 48V
nominal Vin and full load
12V input, 100ms max.
24V input, 100ms max.
48V input, 100ms max.
nominal Vin and constant resistor load Power up
of full load
measured by 20MHz bandwidth
Single
Dual
Positive Logic
DC-DC ON
DC-DC OFF
Negative Logic
DC-DC ON
DC-DC OFF
DC-DC OFF
DC-DC ON
RP10-E
Series
Min.
9VDVC
18VDC
36VDC
270kHz
10%
-0.5mA
Typ.
12VDC
24VDC
48VDC
30mAp-p
20ms
300kHz
Max.
18VDC
36VDC
75VDC
none
Pi-Type
36VDC
50VDC
100VDC
330kHz
50mVp-p
75mVp-p
Open or 3.5V < Vr < 12V
Short or 0V < Vr < 1.2V
Short or 0V < Vr < 1.2V
Open or 3.5V < Vr < 12V
20mA
+1.0mA
Notes:
Note5: Simulated source impedance of 12μH. 12μH inductor in series with +Vin.
Note6: The RP10 (W) series required a minimum 10% loading on the output to maintain specified regulation.
Operation under no-load condition will not damage these devices, however they may not meet all listed
specification.
Note7: The ON/OFF control function can be positive or negative logic. The pin voltage is referenced to -Vin pin.
If no suffix is specified, the control pin will be omitted.
RP10-1205SE
Efficiency vs. Output Current
95
90
85
80
75
70
65
60
55
50 9Vin
45
12Vin
18Vin
40
10 20 30 40 50 60 70 80 90 100
Output Current [%]
Efficiency vs. Input Voltage
85
80
75
70
65
60
55
9
10 11
12 13 14 15 16 17 18
Total Input Voltage [%]
PD-2
continued on next page
REV.: 2/2017
