RP40-2412SGW - DC/DC Converter

This page provides the datasheet information for the RP40-2412SGW, a member of the RP40-243.3SGW DC/DC Converter family.

Description

The RP40-GW series wide input range DC/DC converters are certified to UL 60950-1 and to cUL 60950-1.

This makes them ideal for all telecom and industrial applications where approved safety standards are required.

Features

  • Regulated Converters.
  • 4:1 Wide Input Voltage Range.
  • 1.6kVDC Isolation.
  • UL Certified.
  • Efficiency up to 89%.
  • Six-Sided Continuous Shield.
  • Available as Power Module (RPM40-GW) DC/DC Converter RP40-GW.

📥 Download Datasheet

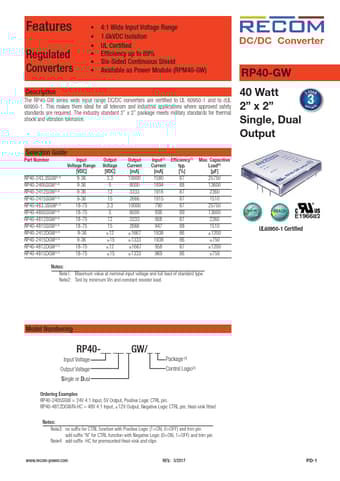

Datasheet preview – RP40-2412SGW

Datasheet Details

Part number RP40-2412SGW
Manufacturer RECOM
File Size 324.62 KB
Description DC/DC Converter
Datasheet download datasheet RP40-2412SGW Datasheet
Additional preview pages of the RP40-2412SGW datasheet.

📁 Similar Datasheet

  • RP402K - High Efficiency Small Packaged Step-up DC/DC Converter (Nisshinbo)
  • RP402K501x - High Efficiency Small Packaged Step-up DC/DC Converter (RICOH)
  • RP402K502x - High Efficiency Small Packaged Step-up DC/DC Converter (RICOH)
  • RP402K551x - High Efficiency Small Packaged Step-up DC/DC Converter (RICOH)
  • RP402K552x - High Efficiency Small Packaged Step-up DC/DC Converter (RICOH)
  • RP402N - High Efficiency Small Packaged Step-up DC/DC Converter (Nisshinbo)
  • RP402Nxx - High Efficiency Small Packaged Step-up DC/DC Converter (RICOH)
  • RP411012 - General Purpose Relays (TE)
  • RP411024 - General Purpose Relays (TE)
  • RP411048 - General Purpose Relays (TE)
Other Datasheets by RECOM

Full PDF Text Transcription

Click to expand full text
Features Regulated Converters • 4:1 Wide Input Voltage Range • 1.6kVDC Isolation • UL Certified • Efficiency up to 89% • Six-Sided Continuous Shield • Available as Power Module (RPM40-GW) DC/DC Converter RP40-GW Description The RP40-GW series wide input range DC/DC converters are certified to UL 60950-1 and to cUL 60950-1. This makes them ideal for all telecom and industrial applications where approved safety standards are required. The industry standard 2” x 2” package meets military standards for thermal shock and vibration tolerance. 40 Watt 2” x 2” 33 YEAR warranty Single, Dual Output Selection Guide Part Number Input Voltage Range [VDC] RP40-243.3SGW(3,4) 9-36 RP40-2405SGW(3,4) 9-36 RP40-2412SGW(3,4) 9-36 RP40-2415SGW(3,4) 9-36 RP40-483.
