R1131N121A, R1131D081A LDO REGULATOR

R1131N121A Description

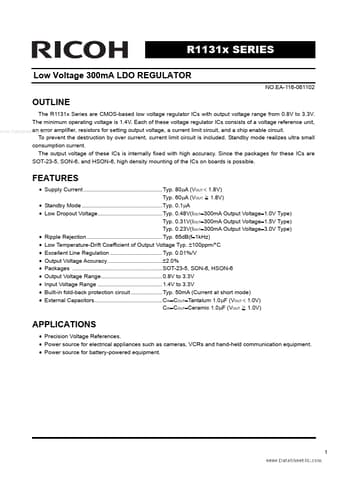

R1131x SERIES Low Voltage 300mA LDO REGULATOR NO.EA-116-061102 OUTLINE The R1131x Series are CMOS-based low voltage regulator ICs with output voltage.
SOT-23-5 Pin No. Description Input Pin Ground Pin Chip Enable Pin No Connection Output pin SO.

R1131N121A Features

* Supply Current Typ. 80µA (VOUT < 1.8V) Typ. 60µA (VOUT > = 1.8V)
* Standby Mode Typ. 0.1µA
* Low Dropout VoltageTyp. 0.48V(IOUT=300mA Output Voltage=1.0V Type) Typ. 0.31V(IOUT=300mA Output Voltage=1.5V Type) Typ. 0.23V(IOUT=300mA Output Voltage=3.0V Type)
* Ripple R

R1131N121A Applications

* Precision Voltage References.
* Power source for electrical appliances such as cameras, VCRs and hand-held communication equipment.
* Power source for battery-powered equipment. 1 R1131x BLOCK DIAGRAM R1131xxxxA VDD VOUT VDD R1131xxxxB VOUT www. DataSheet4U. com Vref Cu
