R1163D271D, R1163x Datasheet - RICOH

R1163D271D, R1163x, 3-MODE 150mA LDO REGULATOR

1 VOUT Output pin 2 GND Ground Pin ECO R1163xxx1B/D: FT/LP Mode Alternative Pin (“L” LP) 3 ECO R1163xxx1E: FT/LP Mode Alternative Pin (“H” LP) 4 CE Chip Enable pin ("H" Active) 5 NC No Connection 6 VDD Input Pin ∗) Tab is GND level. (They are connected to the reverse side of thi.

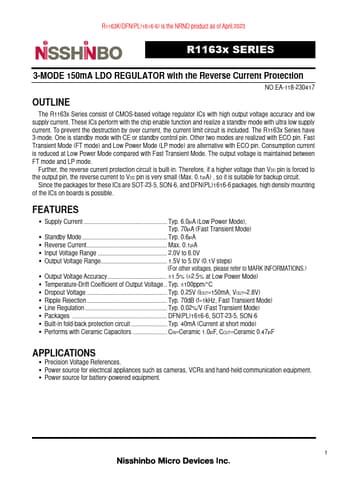

 Datasheet Preview Page 1

R1163x_RICOHelectronics.pdf

This datasheet PDF includes multiple part numbers: R1163D271D, R1163x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

R1163D271D, R1163x

Manufacturer:

RICOH

File Size:

1.56 MB

Description:

3-MODE 150mA LDO REGULATOR

Note:

This datasheet PDF includes multiple part numbers: R1163D271D, R1163x.
Please refer to the document for exact specifications by model.

R1163D271D Features

* Supply Current Typ. 6.0µA (Low Power Mode), Typ. 70µA (Fast Transient Mode)

* Standby Mode Typ. 0.6µA

* Reverse Current Max. 0.1µA

* Input Voltage Range 2.0V to 6.0V

* Output Voltage Range 1.5V to 5.0V (0.1V steps) (For other voltages, please refer to MAR
