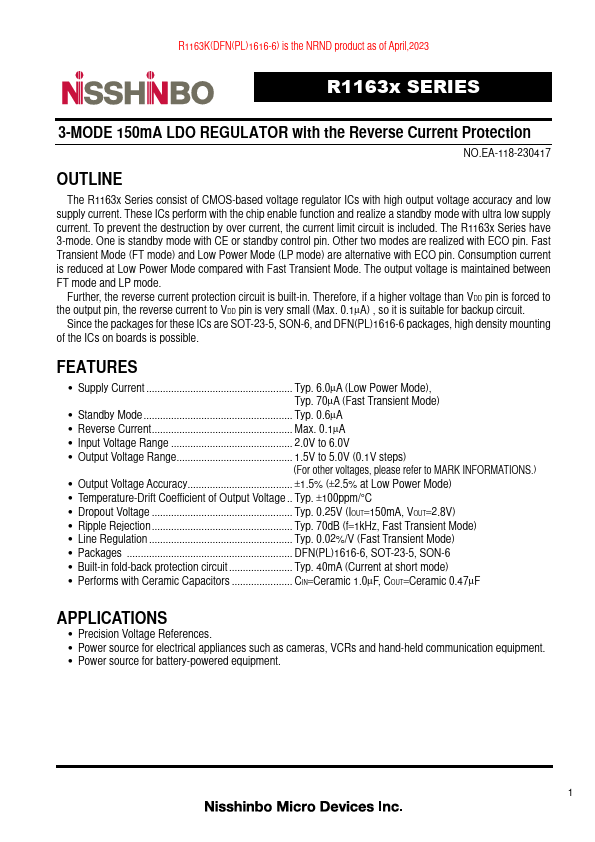

R1163D281D5 - 3-MODE 150mA LDO REGULATOR
These ICs perform with the chip enable function and realize a standby mode with ultra low supply current.
To prevent the destruction by over current, the current limit circuit is included.
The R1163x Series have 3-mode.
R1163D281D5 Features
* Supply Current Typ. 6.0µA (Low Power Mode), Typ. 70µA (Fast Transient Mode)
* Standby Mode Typ. 0.6µA
* Reverse Current Max. 0.1µA
* Input Voltage Range 2.0V to 6.0V
* Output Voltage Range 1.5V to 5.0V (0.1V steps) (For other voltages, please refer to MAR
