RP104Q (SC-82AB) is the discontinued product as of October 2016

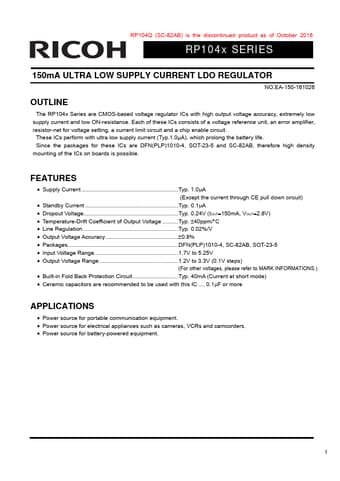

RP104x SERIES
150mA ULTRA LOW SUPPLY CURRENT LDO REGULATOR
NO.EA-150-161026
OUTLINE
The RP104x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current and low ON-resistance. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit and a chip enable circuit.
These ICs perform with ultra low supply current (Typ.1.0µA), which prolong the battery life. Since the packages for these ICs are DFN(PLP)1010-4, SOT-23-5 and SC-82AB, therefore high density mounting of the ICs on boards is possible.
FEATURES
Supply Current .............................................................Typ. 1.
