BD68610EFV Datasheet

36V Stepping Motor Driver

No Preview Available !

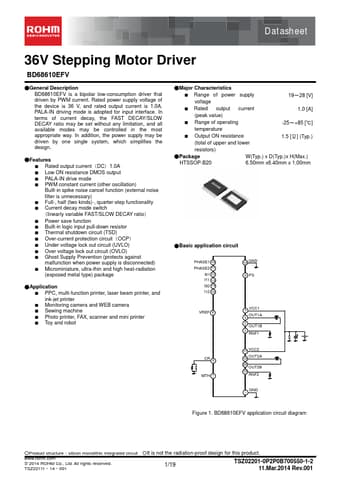

Datasheet
36V Stepping Motor Driver
BD68610EFV
General Description
BD68610EFV is a bipolar low-consumption driver that
driven by PWM current. Rated power supply voltage of
the device is 36 V, and rated output current is 1.0A.
PALA-IN driving mode is adopted for input interface. In
terms of current decay, the FAST DECAY/SLOW
DECAY ratio may be set without any limitation, and all
available modes may be controlled in the most
appropriate way. In addition, the power supply may be
driven by one single system, which simplifies the
design.
Features
Rated output currentDC1.0A
Low ON resistance DMOS output
PALA-IN drive mode
PWM constant current (other oscillation)
Built-in spike noise cancel function (external noise
filter is unnecessary)
Full-, half (two kinds)-, quarter-step functionality
Current decay mode switch
linearly variable FAST/SLOW DECAY ratio
Power save function
Built-in logic input pull-down resistor
Thermal shutdown circuit (TSD)
Over-current protection circuitOCP
Under voltage lock out circuit (UVLO)
Over voltage lock out circuit (OVLO)
Ghost Supply Prevention (protects against
malfunction when power supply is disconnected)
Microminiature, ultra-thin and high heat-radiation
(exposed metal type) package
Application
PPC, multi-function printer, laser beam printer, and
ink-jet printer
Monitoring camera and WEB camera
Sewing machine
Photo printer, FAX, scanner and mini printer
Toy and robot
Major Characteristics
Range of power supply
1928 [V]
voltage
Rated output current
1.0 [A]
(peak value)
Range of operating
-25+85 []
temperature
Output ON resistance
1.5 [Ω] (Typ.)
(total of upper and lower
resistors)
Package
W(Typ.) x D(Typ.)x H(Max.)
HTSSOP-B20
6.50mm x6.40mm x 1.00mm
Basic application circuit
PHASE1 10
PHASE2 11
I01 12
I11 13
I02 14
I12 15
16 GND
9 PS
VREF 8
5 VCC1
4 OUT1A
2
OUT1B
3
RNF1
CR 6
MTH 7
17 VCC2
18 OUT2A
20 OUT2B
19
RNF2
1 GND
Figure 1. BD68610EFV application circuit diagram
Product structuresilicon monolithic integrated circuit It is not the radiation-proof design for this product.
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ2211114001
1/19
TSZ02201-0P2P0B700550-1-2
11.Mar.2014 Rev.001


Rohm Semiconductor Electronic Components Datasheet

BD68610EFV Datasheet

36V Stepping Motor Driver

No Preview Available !

BD68610EFV
Terminals Configuration Diagram
[TOP VIEW]
Block Diagram
GND 1
OUT1B 2
RNF1 3
OUT1A 4
VCC1 5
CR 6
MTH 7
VREF 8
PS 9
PHASE1 10
20 OUT2B
19 RNF2
18 OUT2A
17 VCC2
16 GND
15 I12
14 I02
13 I11
12 I01
11 PHASE2
PHASE1 10
PHASE2 11
I01 12
I11 13
I02 14
I12 15
Translator
VREF 8
2bit DAC
RNF1S
RNF2S
Blank time
PWM control
CR 6
OSC
MTH 7
Mix decay
control
TSD
OVLO
RESET
OCP
UVLO
Regulator
16 GND
9 PS
5 VCC1
4 OUT1A
2
OUT1B
3
RNF1
17 VCC2
18 OUT2A
20
OUT2B
19
RNF2
1 GND
Figure 2. Terminals Configuration Diagram
Figure 3. BD68610EFV Block Diagram
Descriptions on Terminals
NO. Designation
Function
1
GND
Ground terminal
2 OUT1B H bridge output terminal
NO. Designation
Function
11 PHASE2 Phase selection terminal
12 I01 VREF division ratio setting terminal
Connection terminal of resistor for
3 RNF1
13
output current detection
I11 VREF division ratio setting terminal
4 OUT1A H bridge output terminal
14 I02 VREF division ratio setting terminal
5
VCC1
Power supply terminal
15 I12 VREF division ratio setting terminal
6
CR Connection terminal of CR for 16
GND
Ground terminal
setting chopping frequency
7
MTH
Current decay mode setting t
17 VCC2 Power supply terminal
Output current value setting
8 VREF
terminal
9 PS Power save terminal
10 PHASE1 Phase selection terminal
18 OUT2A H bridge output terminal
Connection terminal of resistor for
19 RNF2
output current detection
20 OUT2B H bridge output terminal
www.rohm.com
© 2014 ROHM Co., Ltd. All rights reserved.
TSZ2211115001
2/19
TSZ02201-0P2P0B700550-1-2
11.Mar.2014 Rev.001
