RM6203 High Performance Current Mode PWM Switching Power Supply Controller

RM6203 Description

www.DataSheet4U.com RM6203 High Performance Current Mode PWM Switching Power Supply controller .
The RM6203 is a current mode PWM switching power supply controller that specifically designed for AC/DC converter with high performance versus cost ra.

RM6203 Features

* Built-in 700V high voltage power switching tube with minimal external parts count
* Latched PWM and pulse-by-pulse current limiting inspection
* Reduced frequency at low output with standby power consumption below 0.25W
* Built-in slope and feedback compensation function
* S

RM6203 Applications

* Power Adaptors(traveling chargers ,stand-alone power set)
* Internal power supply for Energy-Saving Appliances (such as electromagnetic oven, microwave oven and etc. ) www. reactor-micro. com 1 RM6203 www. DataSheet4U. com TYPICAL APPLICATION PACKAGE INFORMATION TOP VIEW DIP-8 PIN FUNCT

📥 Download Datasheet

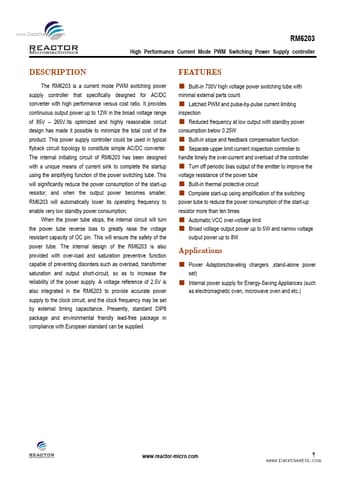

Preview of RM6203 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RM6203
Manufacturer
Reactor
File Size
341.81 KB
Datasheet
RM6203_Reactor.pdf
Description
High Performance Current Mode PWM Switching Power Supply Controller
