KBP202, KBP2005 GLASS PASSIVATED BRIDGE RECTIFIER

KBP202 Description

GLASS PASSIVATED BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes KBP2005 THRU KBP210 .

KBP202 Features

* Ideal for printed circuit board
* Surge overload rating: 60 amperes peak
* Ideal for printed circuit board
* Plastic material has Underwriters Laboratory
* plastic technique
* Reliable low cost construction utilizing molded KBP .460(11.70) .420(10.70) AC MECHANICAL DATA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBP202, KBP2005. Please refer to the document for exact specifications by model.

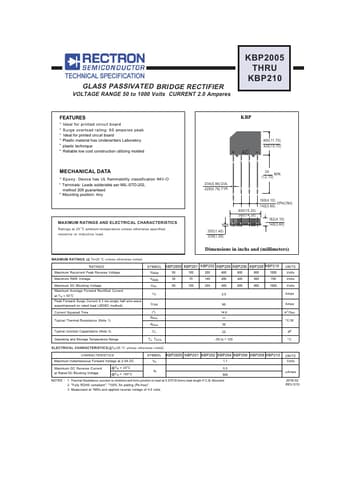

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBP202, KBP2005
Manufacturer
Rectron
File Size
264.64 KB
Datasheet
KBP2005-Rectron.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: KBP202, KBP2005.
Please refer to the document for exact specifications by model.
