BD5258, BD52xx, Free Delay Time Setting CMOS Voltage Detector

Rohm's BD52xx and BD53xx series are highly accurate, low current consumption Voltage Detector ICs with a capacitor-controlled time delay. The line up includes BD52xx devices with N channel open drain output and BD53xx devices with CMOS output. The devices are available for specific detection voltage.

BD52xx_Rohm.pdf

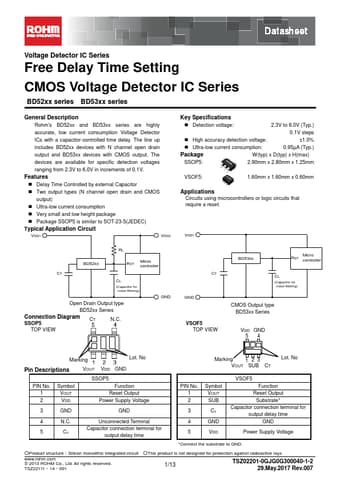

BD5258 Datasheet Preview — This datasheet PDF includes multiple part numbers: BD5258, BD52xx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD5258, BD52xx

Manufacturer:

ROHM ↗

File Size:

1.00 MB

Description:

Free Delay Time Setting CMOS Voltage Detector

Note:

This datasheet PDF includes multiple part numbers: BD5258, BD52xx.
Please refer to the document for exact specifications by model.

BD5258 Features

* Delay Time Controlled by external Capacitor Two output types (N channel open drain and CMOS output) Ultra-low current consumption Very small and low height package Package SSOP5 is similar to SOT-23-5(JEDEC)

* Typical Application Circuit VDD1 RL 2.3V to 6.0V (Typ.) 0.1V steps High accuracy detec
