RFV8TJ6S - Super Fast Recovery Diode

Datasheet Summary

Features

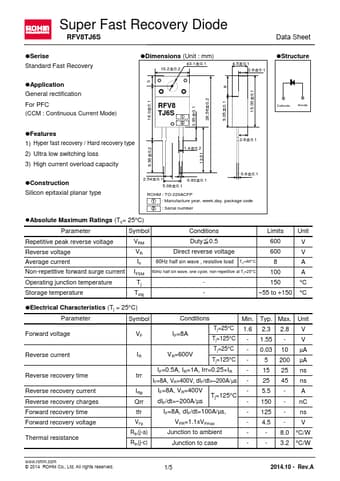

  • 1) Hyper fast recovery / Hard recovery type 2) Ultra low switching loss 3) High current overload capacity lConstruction Silicon epitaxial planar type RFV8 TJ6S 9.05±0.1 15.05±0.1 Cathode Anode 1 2 2.6±0.1 9.56±0.2 1.4±0.2 13.51 0.6±0.1 2.54±0.1 0.83±0.1 5.08±0.1 ROHM : TO-220ACFP 1 : Manufacture year, week,day, package code 2 : Serial number lAbsolute Maximum Ratings (Tc= 25°C) Parameter Repetitive peak reverse voltage Reverse voltage Average current Non-repetitive forward surge curren.
