NR130A - Ultra light load high efficiency Buck Regulator

Description

The NR130A series is buck regulator ICs integrates High-side power MOSFETs.

With the current mode control, ultra low ESR capacitors such as ceramic capacitors can be used.

The ICs can realize super-high efficiency by performing pulse skip operation at light load condition.

Features

  • & Benefits.
  • Current mode PWM control Up to 94% efficiency at normal load condition Up to 85% efficiency at light load condition Stable with low ESR ceramic output capacitors Built-in protection function Over Current Protection (OCP) Thermal Shutdown (TSD) Under Voltage Lockout (UVLO).
  • Built-in phase compensation.
  • Adjustable Soft-Start with an external capacitor.
  • Turn ON/OF the regulator function Programable Pulse-Skip operation Electrical Characterist.

📥 Download Datasheet

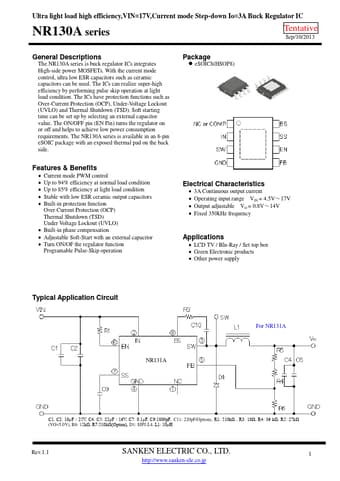

Datasheet preview – NR130A

Datasheet Details

Part number NR130A
Manufacturer Sanken
File Size 666.65 KB
Description Ultra light load high efficiency Buck Regulator
Datasheet download datasheet NR130A Datasheet
Additional preview pages of the NR130A datasheet.

📁 Similar Datasheet

  • NR1600AC - 500mA Low Dropout Voltage Regulator (Nisshinbo)
  • NR1600DD - 500mA Low Dropout Voltage Regulator (Nisshinbo)
  • NR1600GK - 500mA Low Dropout Voltage Regulator (Nisshinbo)
  • NR1620 - Ultra-Low Supply Current Voltage Regulator (Nisshinbo)
  • NR1640 - 200mA Ultra-low Noise Voltage Regulator (Nisshinbo)
Other Datasheets by SANKEN
  • NR131A - Ultra light load high efficiency Buck Regulator
  • NR131S - Buck Regulator
  • NR132A - Ultra light load high efficiency Buck Regulator
  • NR110E - Light Load High Efficiency Buck Regulator
  • NR110K - Buck Converter
  • NR111D - Buck Converter
  • NR111E - Buck Converter
  • NR117K - Buck Converter

Full PDF Text Transcription

Click to expand full text
Ultra light load high efficiency,VIN=17V,Current mode Step-down Io=3A Buck Regulator IC NR130A series General Descriptions The NR130A series is buck regulator ICs integrates High-side power MOSFETs. With the current mode control, ultra low ESR capacitors such as ceramic capacitors can be used. The ICs can realize super-high efficiency by performing pulse skip operation at light load condition. The ICs have protection functions such as Over-Current Protection (OCP), Under-Voltage Lockout (UVLO) and Thermal Shutdown (TSD). Soft starting time can be set up by selecting an external capacitor value. The ON/OFF pin (EN Pin) turns the regulator on or off and helps to achieve low power consumption requirements.
