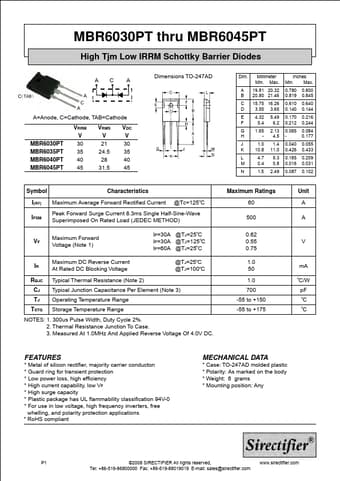

MBR6030PT thru MBR6045PT
High Tjm Low IRRM Schottky Barrier Diodes
AC A
C(TAB)
A C A
A=Anode, C=Cathode, TAB=Cathode
MBR6030PT MBR6035PT MBR6040PT MBR6045PT
VRRM
V 30 35 40 45
VRMS
V 21 24.5 28 31.5
VDC
V 30 35 40 45
Dimensions TO-247AD
Dim. Millimeter Min. Max.
A 19.81 20.32 B 20.80 21.46
C 15.75 16.26 D 3.55 3.65
E 4.32 5.49 F 5.4 6.2
G 1.65 2.13 H - 4.5
J 1.0 1.4 K 10.8 11.0
L 4.7 5.3 M 0.4 0.8
N 1.5 2.49
Inches Min. Max.
0.780 0.800 0.819 0.845
0.610 0.640 0.140 0.144
0.170 0.216 0.212 0.244
0.065 0.084 - 0.177
0.040 0.055 0.426 0.433
0.185 0.209 0.016 0.031
0.087 0.102
Symbol
Characteristics
I(AV) Maximum Average Forward Rectified Current @TC=125oC
IFSM
Peak Forward Surge Current 8.
