203CNQ100 - SCHOTTKY RECTIFIER

This page provides the datasheet information for the 203CNQ100, a member of the 203CNQ080 SCHOTTKY RECTIFIER family.

Features

  • 175℃ TJ operation.
  • Center tap module.
  • High purity, high temperature epoxy encapsulation for.
  • enhanced mechanical strength and moisture resistance.
  • Low forward voltage drop.
  • High frequency operation.
  • Guard ring for enhanced ruggedness and long term reliability.
  • This is a Pb.
  • Free Device.
  • All SMC parts are traceable to the wafer lot.
  • Additional testing can be offered upon request.

📥 Download Datasheet

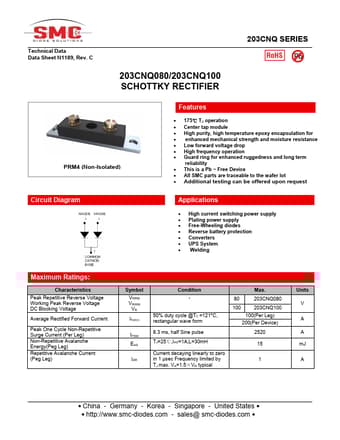

Datasheet preview – 203CNQ100

Datasheet Details

Part number 203CNQ100
Manufacturer SMC Diode
File Size 319.56 KB
Description SCHOTTKY RECTIFIER
Datasheet download datasheet 203CNQ100 Datasheet
Additional preview pages of the 203CNQ100 datasheet.
