SAM80UF - (SAM50F - SAM90F) HIGH VOLTAGE RECTIFIER

This page provides the datasheet information for the SAM80UF, a member of the SAM80F (SAM50F - SAM90F) HIGH VOLTAGE RECTIFIER family.

Datasheet Summary

Features

  • Fast Recovery: 60-150 nsec Maximum PIV to 9000 Volts Hermetically Sealed Void-Free Construction Metallurgically Bonded 175°C Maximum Operating Temperature TX, TXV, and Space Level Screening Available 2/ Designer’s Data Sheet Part Number / Ordering Information 1/ SAM __ │ │ │ │ │ │ │ │ │ │ └ __ │ │ │ │ │ │ │ └ __ __ │ │ │ │ └ └ Screening = None TX = TX Level TXV = TXV Level S = S Level 2/ Package ___ = Axial SMS = Surface Mount Square Tab Recovery Time F = Fast Recovery UF = Ultra Fast R.

📥 Download Datasheet

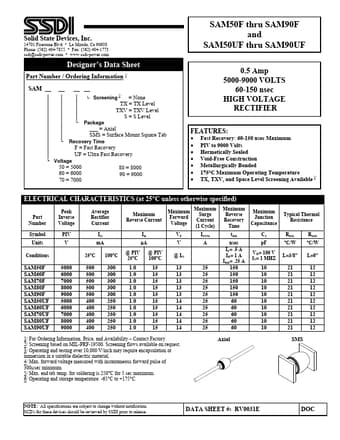

Datasheet preview – SAM80UF

Datasheet Details

Part number SAM80UF
Manufacturer SSDI
File Size 229.53 KB
Description (SAM50F - SAM90F) HIGH VOLTAGE RECTIFIER
