M24C32-R - 32-Kbit serial I2C bus EEPROM

Download the M24C32-R datasheet PDF. This datasheet also covers the M24C32-W variant, as both devices belong to the same 32-kbit serial i2c bus eeprom family and are provided as variant models within a single manufacturer datasheet.

Description

The M24C32 is a 32-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 4 K × 8 bits.

Features

  • SO8N (MN) 150 mil width TSSOP8 (DW) 169 mil width UFDFPN8 (MC) DFN8 - 2x3 mm UFDFPN5 (MH) DFN5 - 1.7x1.4 mm Unsawn wafer WLCSP4 (CU) Product status link M24C32-R M24C32-F M24C32-DF M24C32-X M24C32-W Product label I²C interface.
  • Compatible with following I²C bus modes:.
  • 1 MHz (fast mode plus).
  • 400 kHz (fast mode).
  • 100 kHz (standard mode) Memory.
  • 32 Kbit (4 Kbyte) of EEPROM.
  • Page size: 32 bytes.
  • Additional 32-byte identificatio.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M24C32-W-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
M2408NC020 Fast Recovery Diode IXYS
M2408NC040 Fast Recovery Diode IXYS
M2408NC060 Fast Recovery Diode IXYS
M2408ND020 Fast Recovery Diode IXYS
M2408ND040 Fast Recovery Diode IXYS

Other Datasheets by STMicroelectronics

Part Number Description
M24C32-A125 Automotive 32-Kbit serial I2C bus EEPROM
M24C32-DF 32-Kbit serial I2C bus EEPROM
M24C32-DRE 32-Kbit serial I2C bus EEPROM
M24C32-F 32-Kbit serial I2C bus EEPROM
M24C32-W 32-Kbit serial I2C bus EEPROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

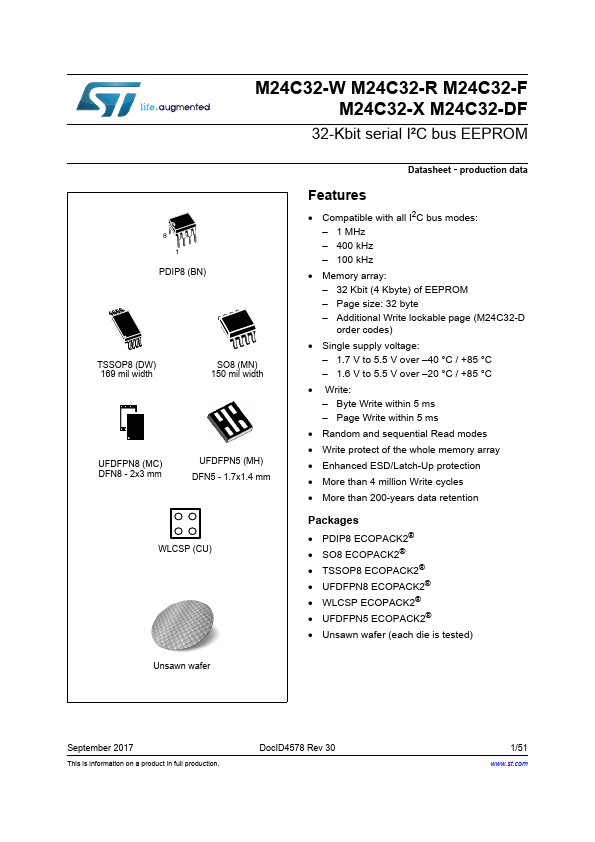

M24C32-R M24C32-F M24C32-DF M24C32-X M24C32-W Datasheet 32-Kbit serial I²C bus EEPROM Features SO8N (MN) 150 mil width TSSOP8 (DW) 169 mil width UFDFPN8 (MC) DFN8 - 2x3 mm UFDFPN5 (MH) DFN5 - 1.7x1.4 mm Unsawn wafer WLCSP4 (CU) Product status link M24C32-R M24C32-F M24C32-DF M24C32-X M24C32-W Product label I²C interface • Compatible with following I²C bus modes: – 1 MHz (fast mode plus) – 400 kHz (fast mode) – 100 kHz (standard mode) Memory • 32 Kbit (4 Kbyte) of EEPROM • Page size: 32 bytes • Additional 32-byte identification page for M24C32-D only Power supply • Wide voltage range: – From 1.7 V to 5.5 V over -40 °C to +85 °C – From 1.6 V to 5.
