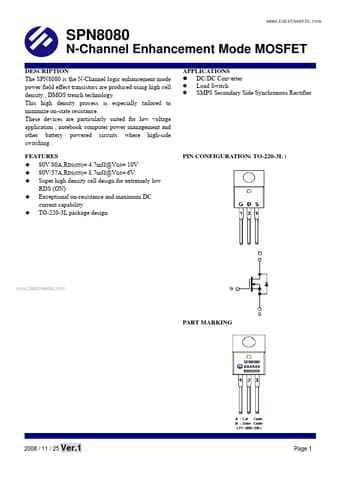

N-Channel Enhancement Mode MOSFET DESCRIPTION The SPN8080 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application , notebook puter power management and other battery powered circuits where high-side switching . Features ‹ 80V/80A,RDS(ON)= 4.7mΩ@VGS= 10V ‹ 80V/37A,RDS(ON)= 8.7mΩ@VGS= 6V ‹ Super high density cell design for extremely low RDS (ON) ‹ Exceptional on-resistance and maximum DC current capability ‹ TO-220-3L package design APPLICATIONS z DC/DC Converter z Load Switch SMPS Secondary Side Synchronous Rectifier z PIN CONFIGURATION( TO-220-3L ) .. PART MARKING 2008 / 11 / 25 Ver.1 Page 1 N-Channel Enhancement Mode MOSFET PIN DESCRIPTION Pin 1 2 3 Symbol G D S Description Gate Drain Source ORDERING INFORMATION Part Number SPN8080T220TGB Package TO-220-3L Part Marking SPN8080 ※ SPN8080T220TGB: Tube ; Pb - Free; Halogen - Free ABSOULTE MAXIMUM RATINGS (TA=25℃ Unless otherwise noted) Parameter Drain-Source Voltage Gate - Source Voltage Continuous Drain Current(TJ=150℃) Pulsed Drain Current Avalanche Current Power Dissipation Avalanche Energy with Single Pulse ( Tj=25℃, ID=30A, VDD=37.5V ) Operating Junction Temperature Storage Temperature Range Thermal Resistance-Junction to Ambient TA=25℃ TA=70℃ TA=25℃ TA=70℃ Symbol VDSS VGSS ID IDM IAS PD EAS TJ TSTG RθJA Typical 80 ±20 Unit V V A A A W m J 80 15 300 15 62.5 3.38 .. -55/150 -55/150 2 ℃ ℃ ℃/W 2008 / 11 / 25 Ver.1 Page 2 N-Channel Enhancement Mode MOSFET ELECTRICAL CHARACTERISTICS (TA=25℃ Unless otherwise noted) Parameter Static Drain-Source Breakdown Voltage Gate Threshold Voltage Gate Leakage Current Zero Gate Voltage Drain Current On-State Drain Current Drain-Source On-Resistance Forward Transconductance...
