SA9205, 6/3 X 8 PORT EXPANDER

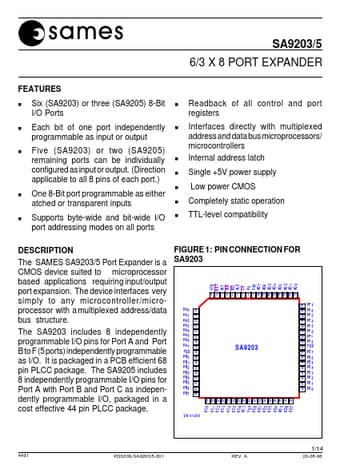

The SAMES SA9203/5 Port Expander is a SA9203 CMOS device suited to microprocessor based applications requiring input/output port expansion. The device interfaces very 9 8 7 6 5 4 3 2 1 68 67 66 65 64 63 62 61 simply to any microcontroller/micro60 PA 0 10 59 processor with a multiplexed address/data .

SA9205_Sames.pdf

SA9205 Datasheet Preview — Preview of SA9205 PDF

Datasheet Details

Part number:

SA9205

Manufacturer:

Sames

File Size:

113.30 KB

Description:

6/3 X 8 PORT EXPANDER

SA9205 Features

* n SA9203/5 6/3 X 8 PORT EXPANDER Six (SA9203) or three (SA9205) 8-Bit I/O Ports Each bit of one port independently programmable as input or output Five (SA9203) or two (SA9205) remaining ports can be individually configured as input or output. (Direction applicable to all 8 pins of each port.) One
